PCM-1660 Multi-Purpose Stripping

Payment Type:    L/C,T/T,Money Gram,Western Union

Incoterm:          FOB,CFR,CIF

Min. Order:         1 Set/Sets

Delivery Time:    30 Days

Transportation:   Ocean



  Contact Now
Product Details

Product description

1. the pcm-8040 model is appropriate for renewing commercial rubber rollers.


2. eliminating antique rubber by using special ring cutter.


Three. replacing the conventional sand-blasting and solvent washing technique by way of superior belt-grinding system.


Four. flawlessly retaining the unique dynamic balance of the roller core.


Five. giving more reliable assure for the bonding of the rubber and steel cores.


6. saving expenses and labors with this stepped forward manufacturing machine.


Roller Strip Cleaning Machine


MODEL

SPECIFICATION

MAX. DIAMETER

MAX. LENGTH

CUBAGE

POWER

LIGHT SCALE

PCM-4030

15.7"

400mm

118"

3000mm

197"*63"*55"

5m*1.6m*1.4m

8.5KW

MEDIUM

PCM-6040

24"

600mm

157.5"

4000mm

236"*70"*59"

6m*1.7m*1.5m

8.5KW

STANDARD

PCM-8040

31.5"

800mm

157.5"

4000mm

236"*71"*63"

6m*1.8m*1.6m

11.9KW

HEAVY DUTY

PCM-1250

47.2"

1200mm

196.9"

5000mm

307"*79"*63"

7.8m*2.0m*1.7m

19KW

LARGE SCALE

PCM-1660

63"

1600mm

236.2"

6000mm

339"*102"*71"

8.6m*2.6m*1.8m

23KW

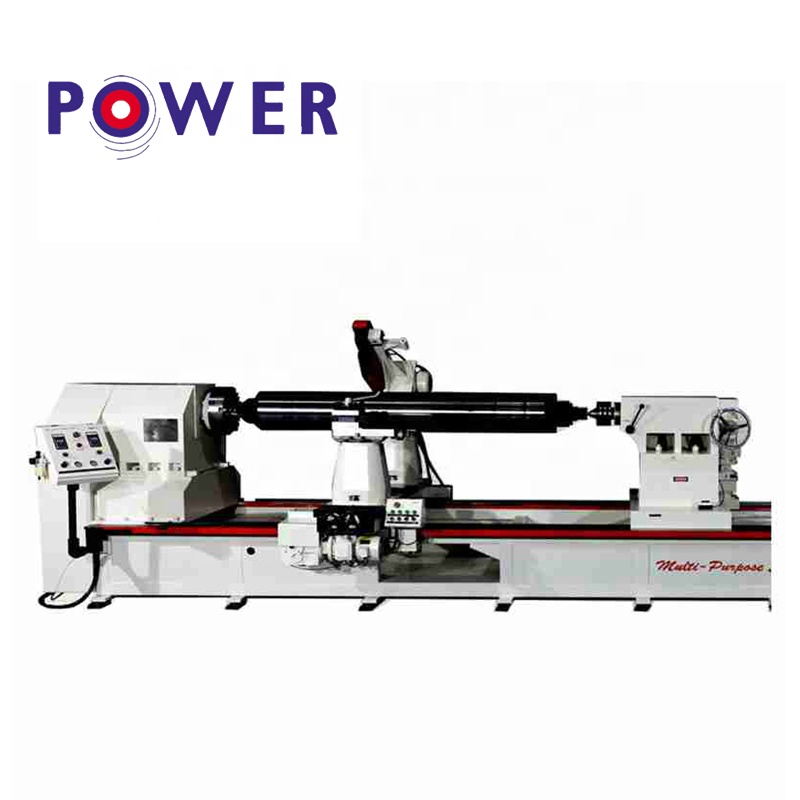

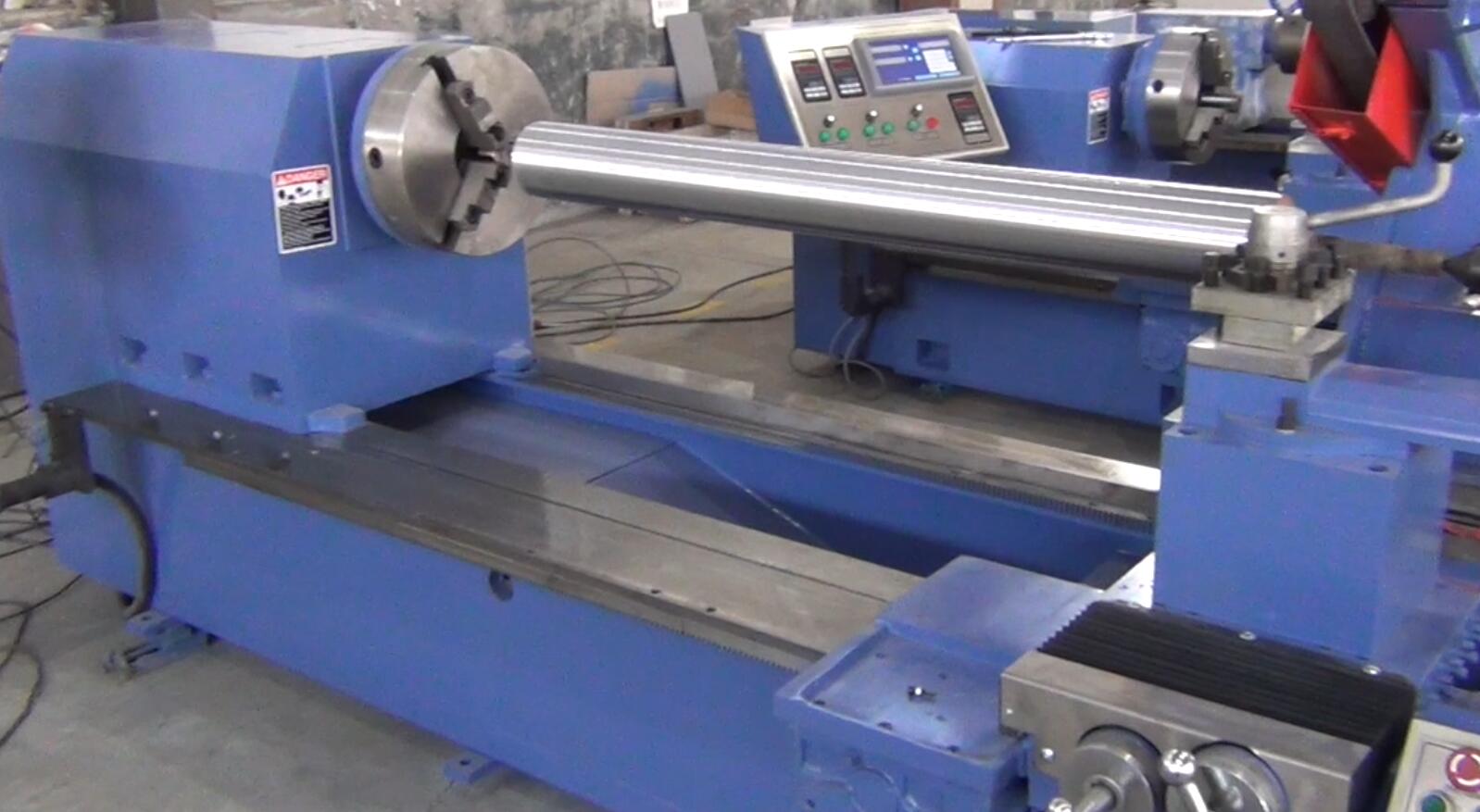

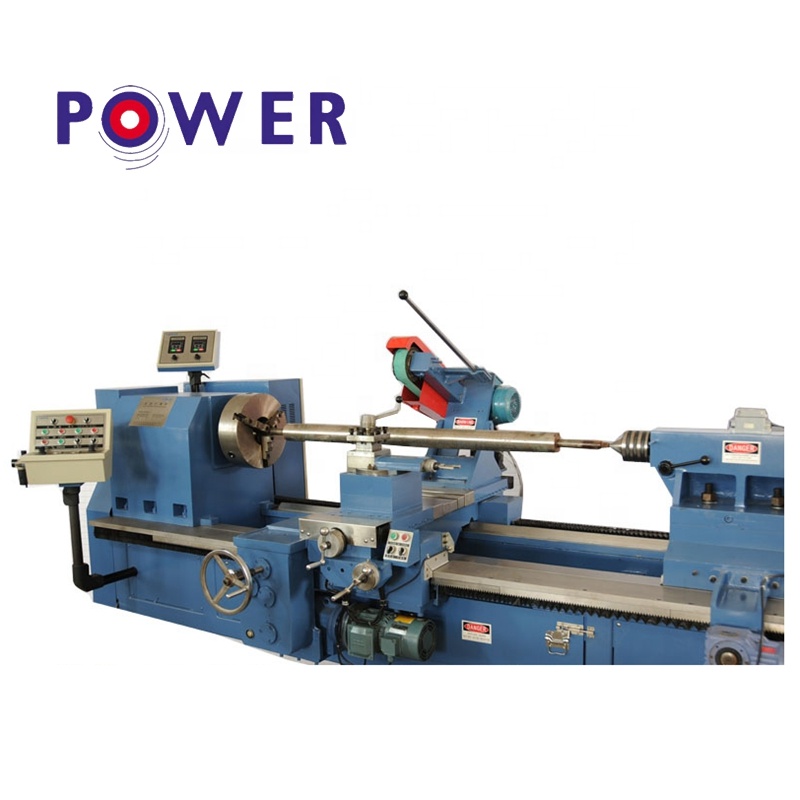

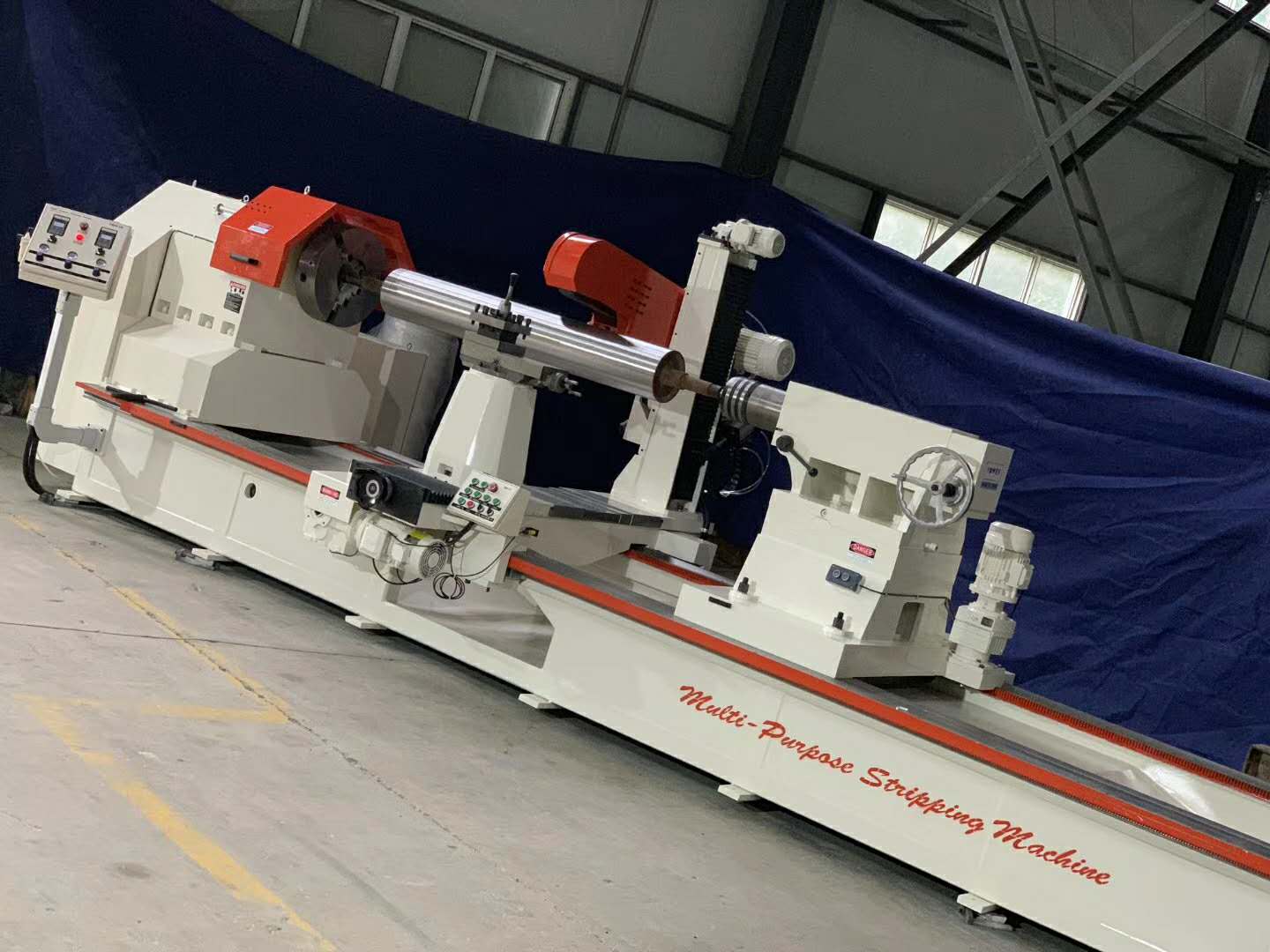

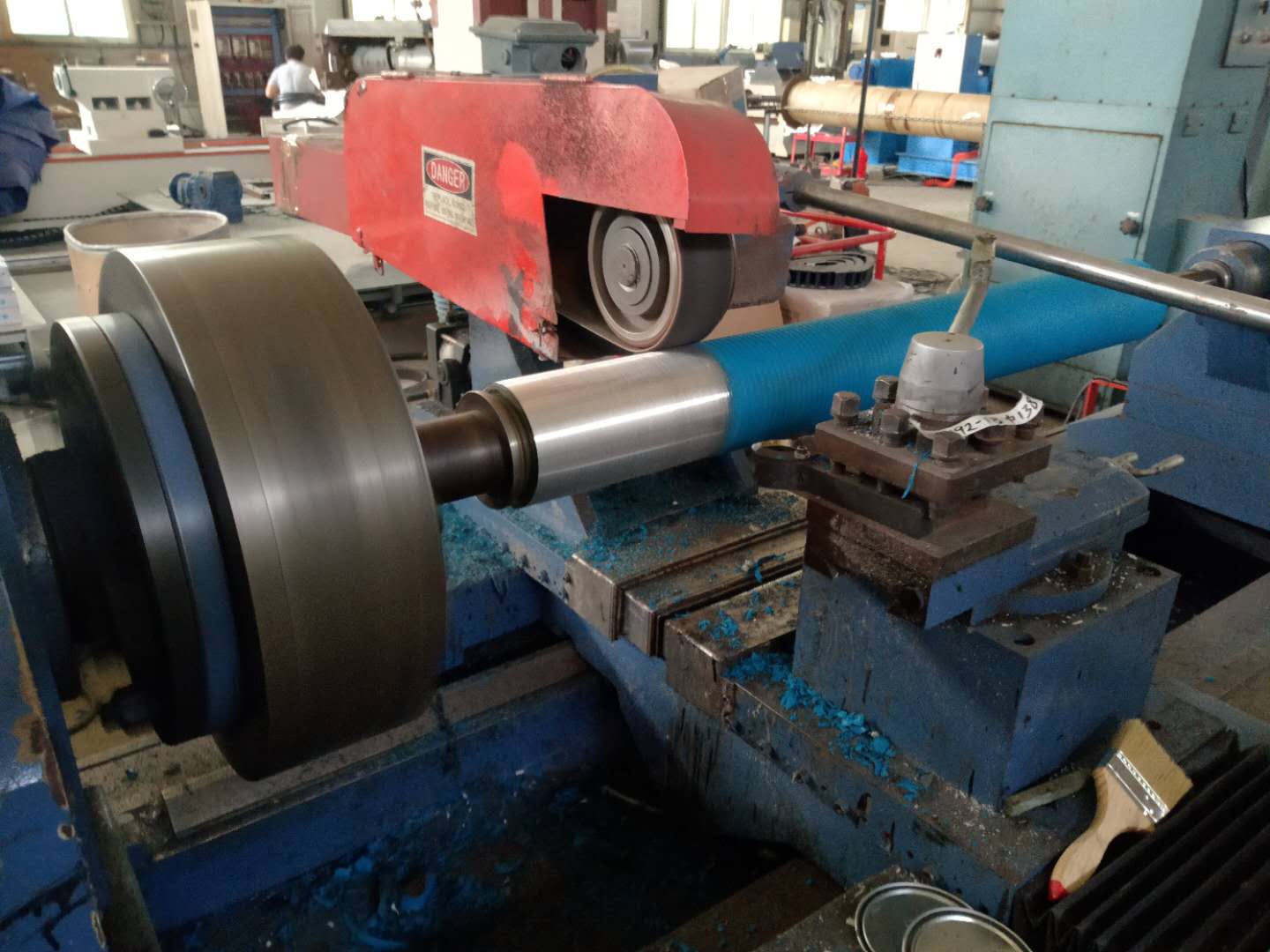

PCM Multi-Purpose Stripping Machine is specially researched, developed and designed for treating old Rubber Rollers. PCM Multi-purpose Stripping Machine has the advantages that: Old rubber can be quickly removed by a special ring cutter, a roller core would have a brand-new surface under the special belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which replaced the traditional sand blasting process. After the belt grinding process, the surface is not required to be cleaned by any solvent, the balance of the roller core is prevented from being damaged. Therefore, production efficiency will be improved, cost and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by this procedure.


Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Delivery time:

Within 2-4 weeks


Product form
