Open Type Rubber Mixing Mill

Product Feature:

1. Made of high quality material

2. Easy installation directly on plain ground

3. Enforce cycle cooling system

4. Safe and efficient


  Contact Now
Product Details



Product Description:

1. Enhance the intensity of the Open Mill machine body by using more carbon steel and less wrought iron.

2. The rubber open mixer machine can be placed on the plain ground directly, other installation method is unnecessary.

3. The roller bearing supports the heavy loading and high temperature. Using roll bearing double the size and use less lubrication oil, able to use longer and easy to maintain.

4. All the parts of the machine are processed by rust proofing with chromium, to prevent the key parts polluted.

5. Enforce cycle cooling system, enhance the cooling effect by using spin joint and enlarge pipe.

6. Using energizing mechanic power off system, guarantee the well and speedy function under the long term using.



Model

φ9"

φ12"

φ14"

φ16"

Roll Size (D/L)

230*635

300*700

360*920

400*1060

Linear Speed (M/Min)

11.8

15.1

19

20.65

Front Roll RPM

16.3

16.1

16.5

16.44

Roll Ratio (Front/Back)

1:1.27*

1:1.27*

1:1.27*

1:1.27*

Produce Weight(Once)

8-12 KG

14-20 KG

20-25 KG

25-35 KG

Motor Power

15KW*

22KW*

37KW/30KW*

55KW/45KW*

Weight (KG)

2800

4300

5800

8000

Dimensions (LXWXH)

2528*1053*1235

2754*1275*1657

3700*1425*1870

4000*1500*1870

Bush

Bearing Type

Bearing Type

Bearing Type

Bearing Type

Receiver Material

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Cooling Mode

Pressurized Cooling Rotating Joint

Emergency Stop

Press Button Brake & Foot Brake

Transmission

Low Noise Gear Box Gear

* Ratio & Motor Power can be customized by different material requirements.



Model

φ18"

φ22"

φ24"

φ26"

Roll Size (D/L)

450*1200

55*1530

610*1830

660*2130

Linear Speed (M/Min)

23.22

28.29

31.6

34.2

Front Roll RPM

16.43

16.38

16.5

16.5

Roll Ratio (Front/Back)

1:1.27*

1:1.29*

1:1.29*

1:1.29*

Produce Weight(Once)

30-50 KG

50-60 KG

120-130 KG

160-170 KG

Motor Power

75KW/55KW*

110KW/90KW*

160KW/132KW*

220KW/160KW*

Weight (KG)

12800

18500

25500

32000

Dimensions (LXWXH)

4560*1670*2020

5370*1950*2200

6100*2050*2200

6240*3350*2670

Bush

Bearing Type

Bearing Type

Bearing Type

Bearing Type

Receiver Material

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Cooling Mode

Pressurized Cooling Rotating Joint

Emergency Stop

Press Button Brake & Foot Brake

Transmission

Low Noise Gear Box Gear

* Ratio & Motor Power can be customized by different material requirements.



Application:

Suitable to prepare plastic compound, mix rubber or conduct hot refining and molding.


Services:

1. On-site Installation service can be selected.

2. Maintenance service for life long.

3. Online support is valid.

4. Technical files will be provided.

5. Training service can be provided.

6. Spare parts replacement and repair service can be provided.


Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film


Shipping detail:

Within 2-4 weeks


Equipment video:

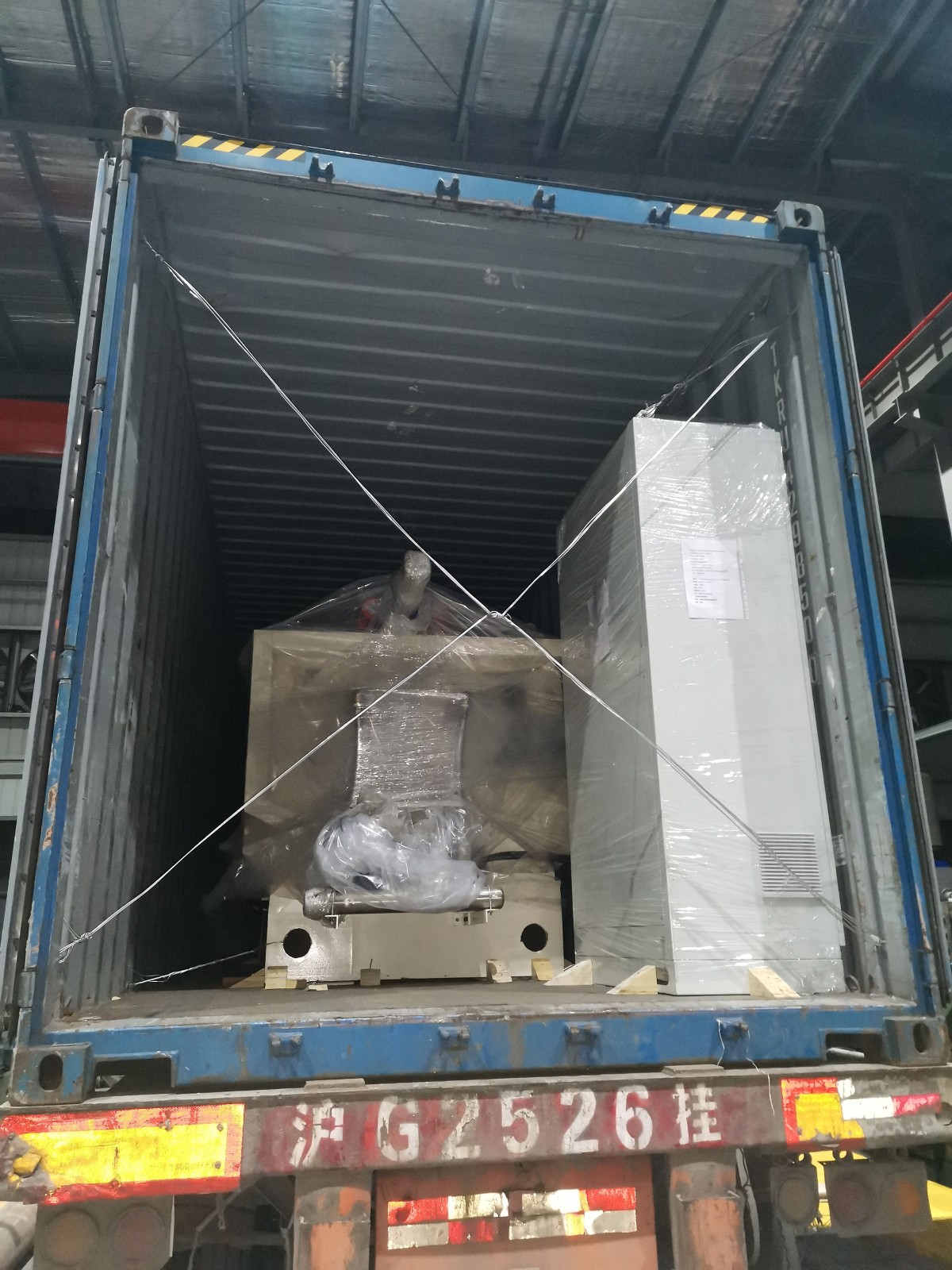

Shipping photos and video:
