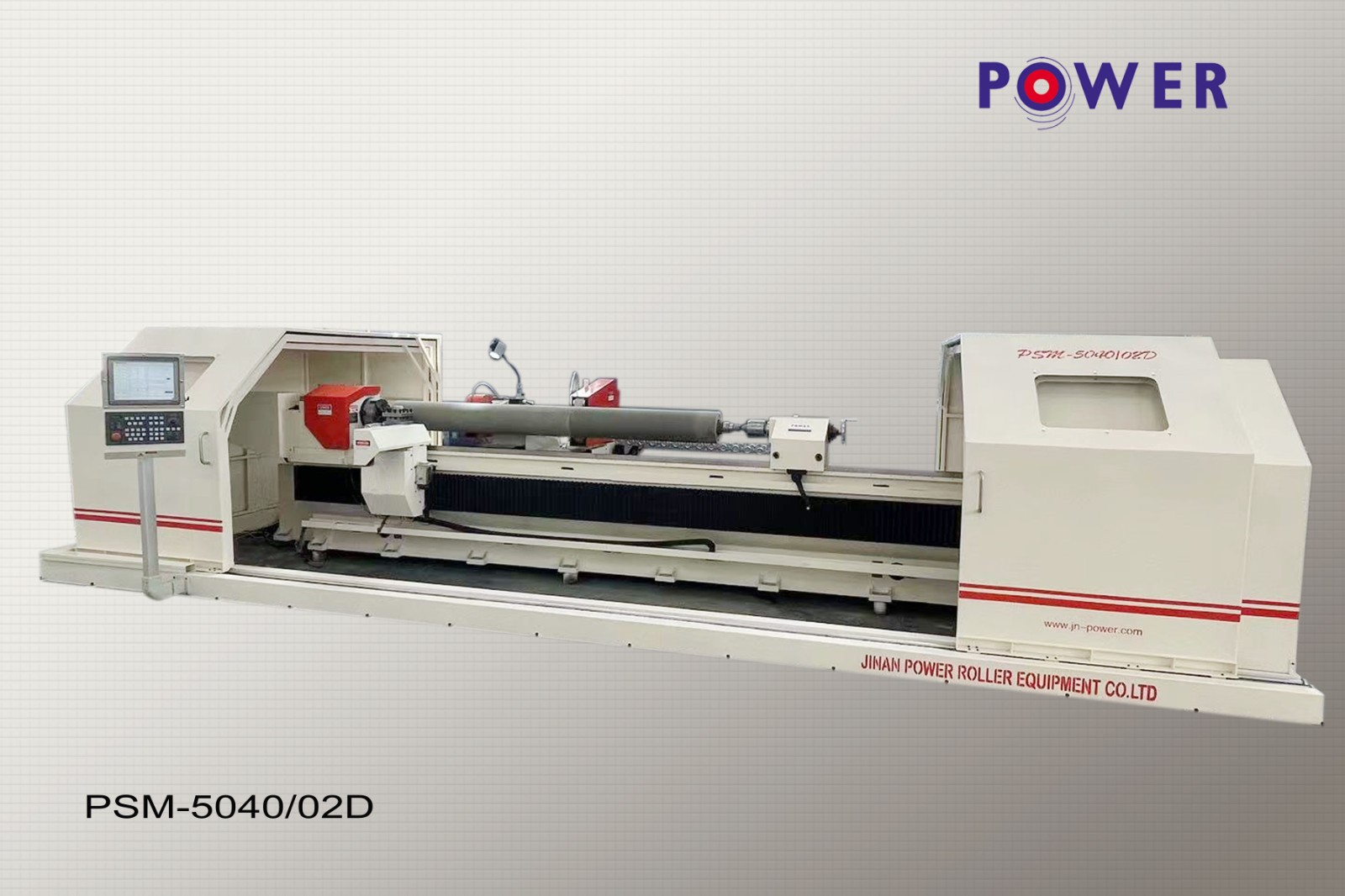

Computer Control Rubber Roller Grooving Machine

Payment Type:       L/C,T/T,Money Gram,Western Union

Incoterm:                FOB,CFR,CIF,EXW

Min. Order:            1 Set/Sets

Delivery Time:        40 Days

Transportation:       Ocean


  Contact Now
Product Details


1. Factory custom designed rubber curler groover has our personal advanced user-pleasant CNC running gadget.

2. The modern CNC gadget can without difficulty perform extra than 35 shapes at the rubber curler surface, which includes: crowning, concave,and wave grindings; herringbone, diamond, immediately groovings, etc.

3. Remote trouble fixing characteristic availabe.

4. Having all of the capabilities of our PSM collection preferred grinding machine


Due to the all-round of the system function, factory customized rubber roller groover can make almost all the profile of rollers. For instance, parabolic crowning and concave, cosine crowning and concave, circular, cone, coarse pitch, herringbone, diamond, straight groove, horizontal groove and other formations in the appended drawing.

35 Program

The feature of PSM series Jinan Rubber Roller CNC Roll Grinding Machine

1. Standard equipment of PSM series includes:
     a. a full flood recirculating coolant system
     b. motorized tailstock
     c. variable speed traverse and spindle drives
     d. front and rear independently operated carriage tables
     e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped rubber rollers.


MODEL

SPECIFICATION

MAX. DIAMETER

MAX. LENGTH

CUBAGE

POWER

LIGHT SCALE

PSM-4020-CNC

16"

400mm

80"

2000mm

158"*63"*55"

4m*1.6m*1.4m

17KW

STANDARD

PSM-8040-CNC

32"

800mm

158"

4000mm

256"*71"*63"

6.5m*1.8m*1.6m

22KW

HEAVY DUTY

PSM-1260-CNC

47"

1200mm

236"

6000mm

315"*79"*71"

8.0m*2.0m*1.8m

26KW

LARGE SCALE

PSM-1680-CNC

63"

1600mm

315"

8000mm

433"*95"*71"

11m*2.4m*1.8m

32KW



Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film


Shipping detail:

Within 2-4 weeks


Equipment video:

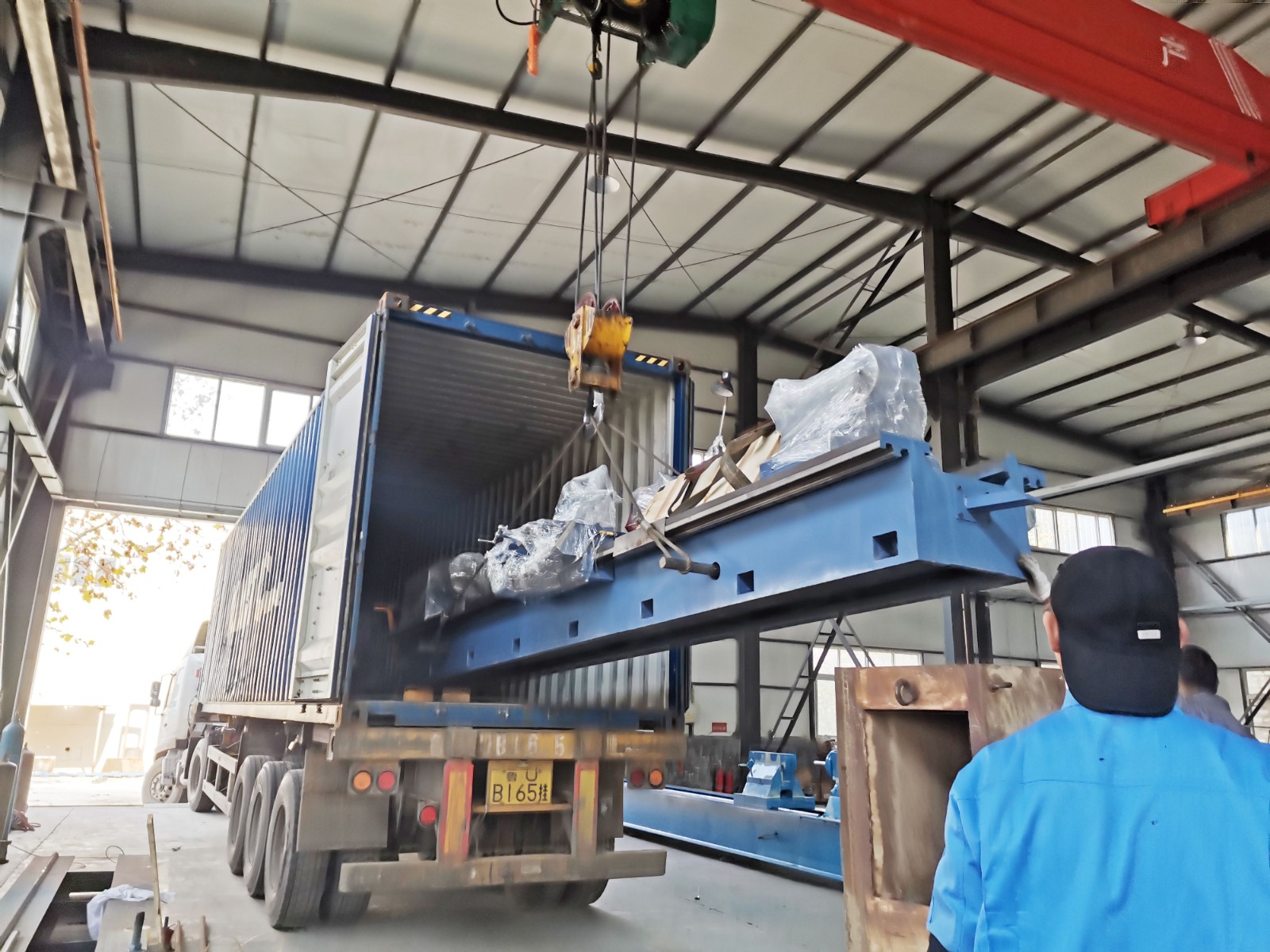

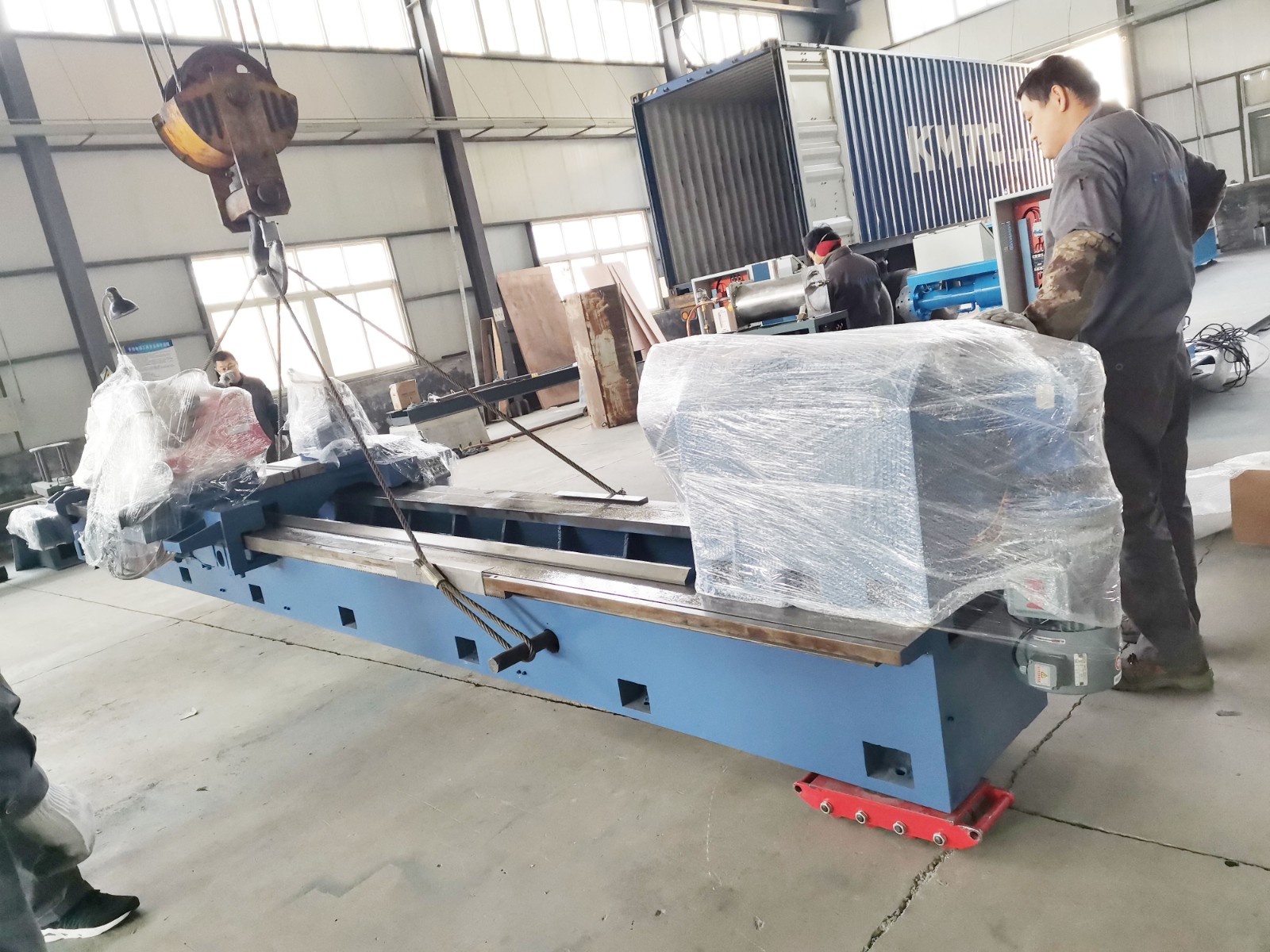

Shipping photos:



Product form
