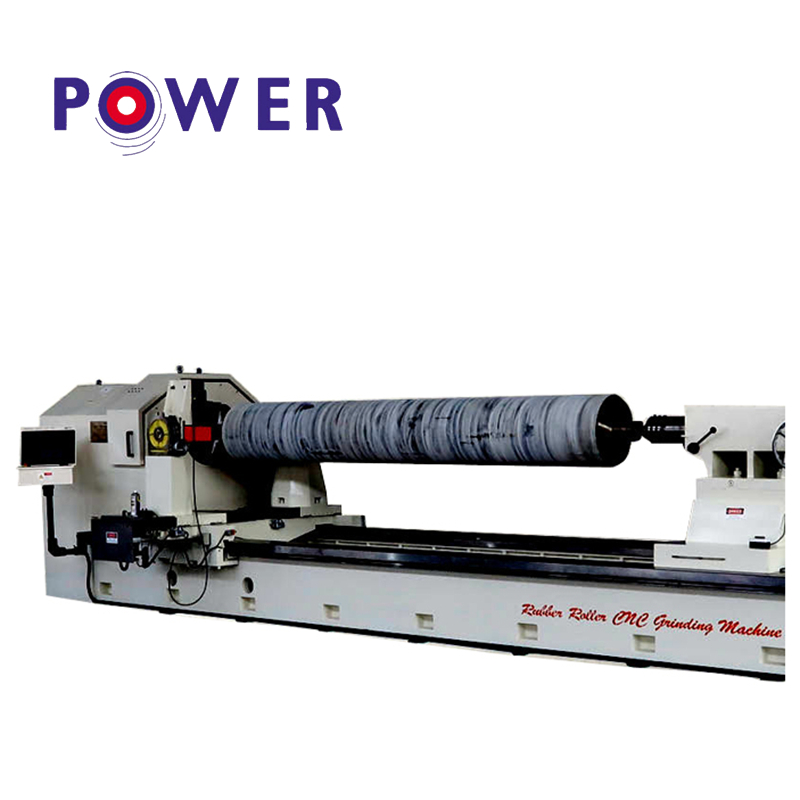

PSM-4020 Rubber Roller Grinding Machine

Payment Type:       L/C,T/T,Money Gram,Western Union

Incoterm:                FOB,CFR,CIF,EXW

Min. Order:            1 Set/Sets

Delivery Time:        40 Days

Transportation:       Ocean


  Contact Now
Product Details



Because of the all-round of the device characteristic, manufacturing unit customized rubber curler groover should make nearly all the profile of rollers. as an instance, parabolic crowning and concave, cosine crowning and concave, circular, cone, coarse pitch, herringbone, diamond, right now groove, horizontal groove and different formations inside the appended drawing.

35 Program

1. Factory customized rubber roller groover has our own developed user-friendly CNC operating system.

2. The latest CNC system can easily operate more than 35 shapes on the rubber roller surface, which includes: crowning, concave,and wave grindings; herringbone, diamond, straight groovings, etc.

3. Remote problem solving function availabe.

4. Having all the functions of our PSM series general grinding machine.

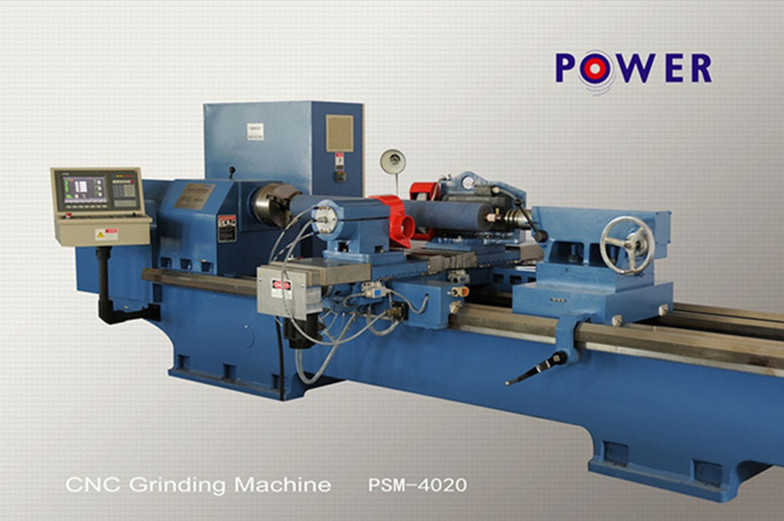

PSM 4020 CNC machine

The feature of PSM series Jinan Rubber Roller CNC Roll Grinding Machine

1. Standard equipment of PSM series includes:
     a. a full flood recirculating coolant system
     b. motorized tailstock
     c. variable speed traverse and spindle drives
     d. front and rear independently operated carriage tables
     e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped rubber rollers.


MODEL

SPECIFICATION

MAX. DIAMETER

MAX. LENGTH

CUBAGE

POWER

LIGHT SCALE

PSM-4020-CNC

16"

400mm

80"

2000mm

158"*63"*55"

4m*1.6m*1.4m

17KW

STANDARD

PSM-8040-CNC

32"

800mm

158"

4000mm

256"*71"*63"

6.5m*1.8m*1.6m

22KW

HEAVY DUTY

PSM-1260-CNC

47"

1200mm

236"

6000mm

315"*79"*71"

8.0m*2.0m*1.8m

26KW

LARGE SCALE

PSM-1680-CNC

63"

1600mm

315"

8000mm

433"*95"*71"

11m*2.4m*1.8m

32KW



Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film


Shipping detail:

Within 2-4 weeks


Equipment video:

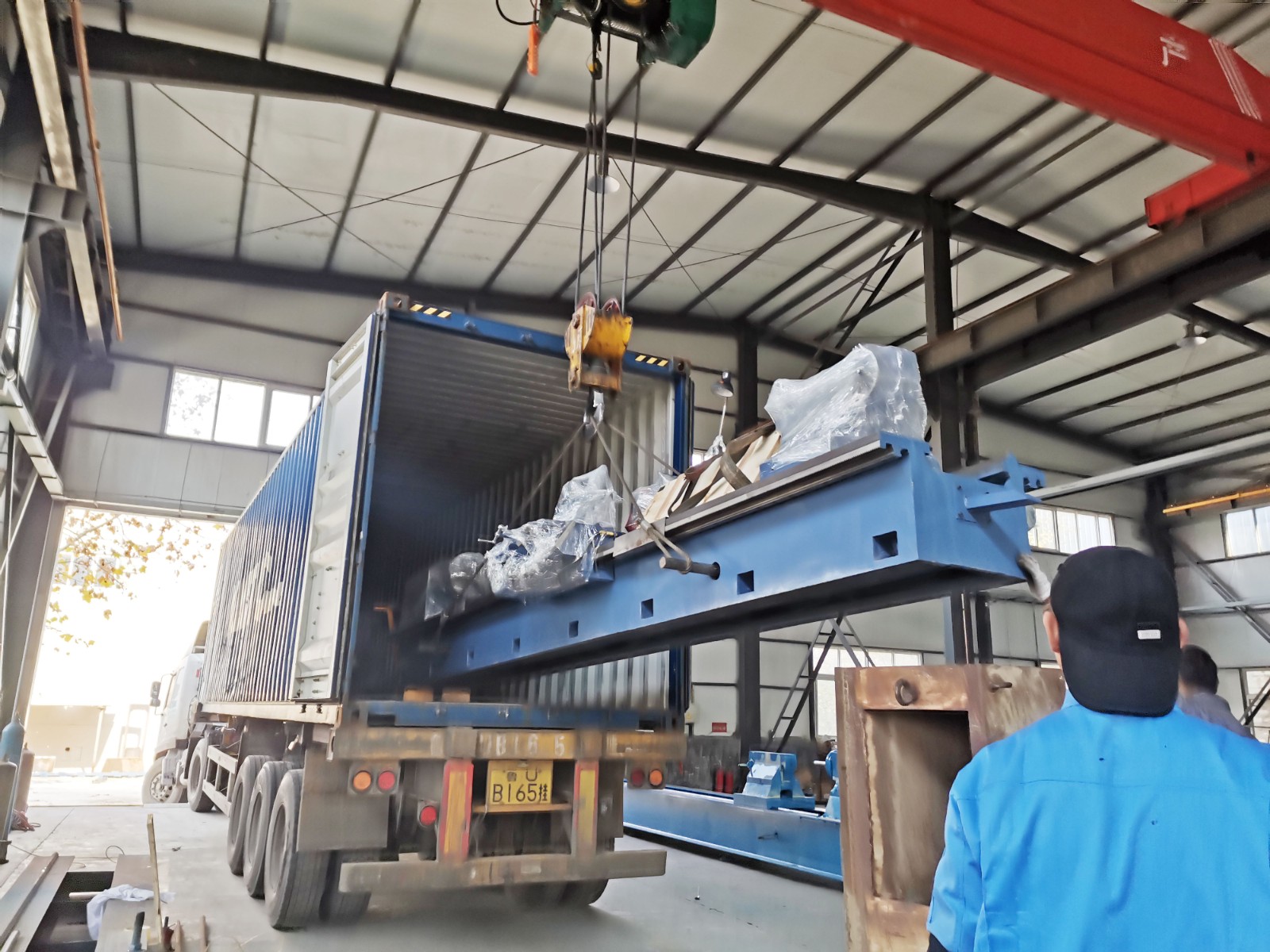

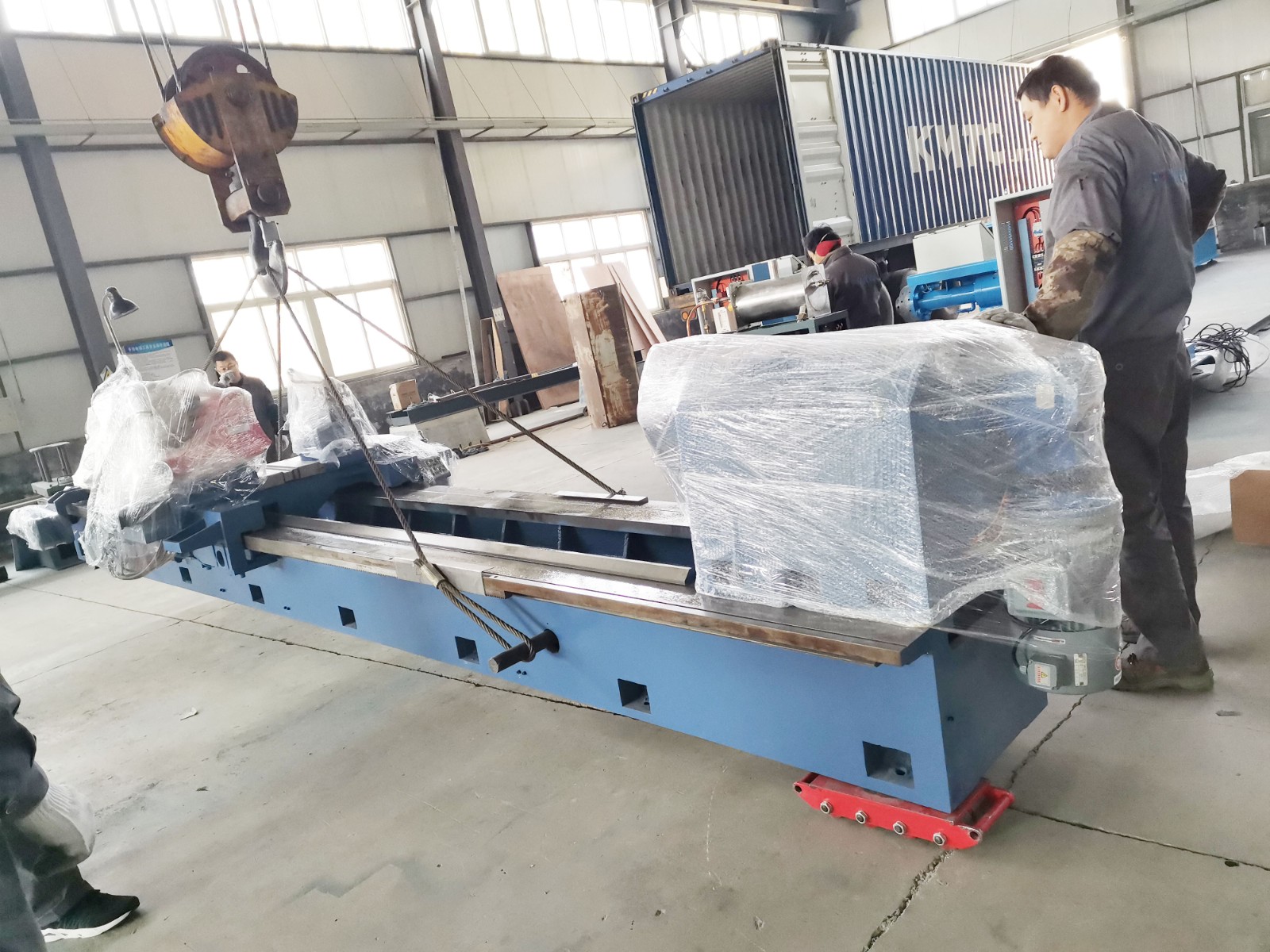

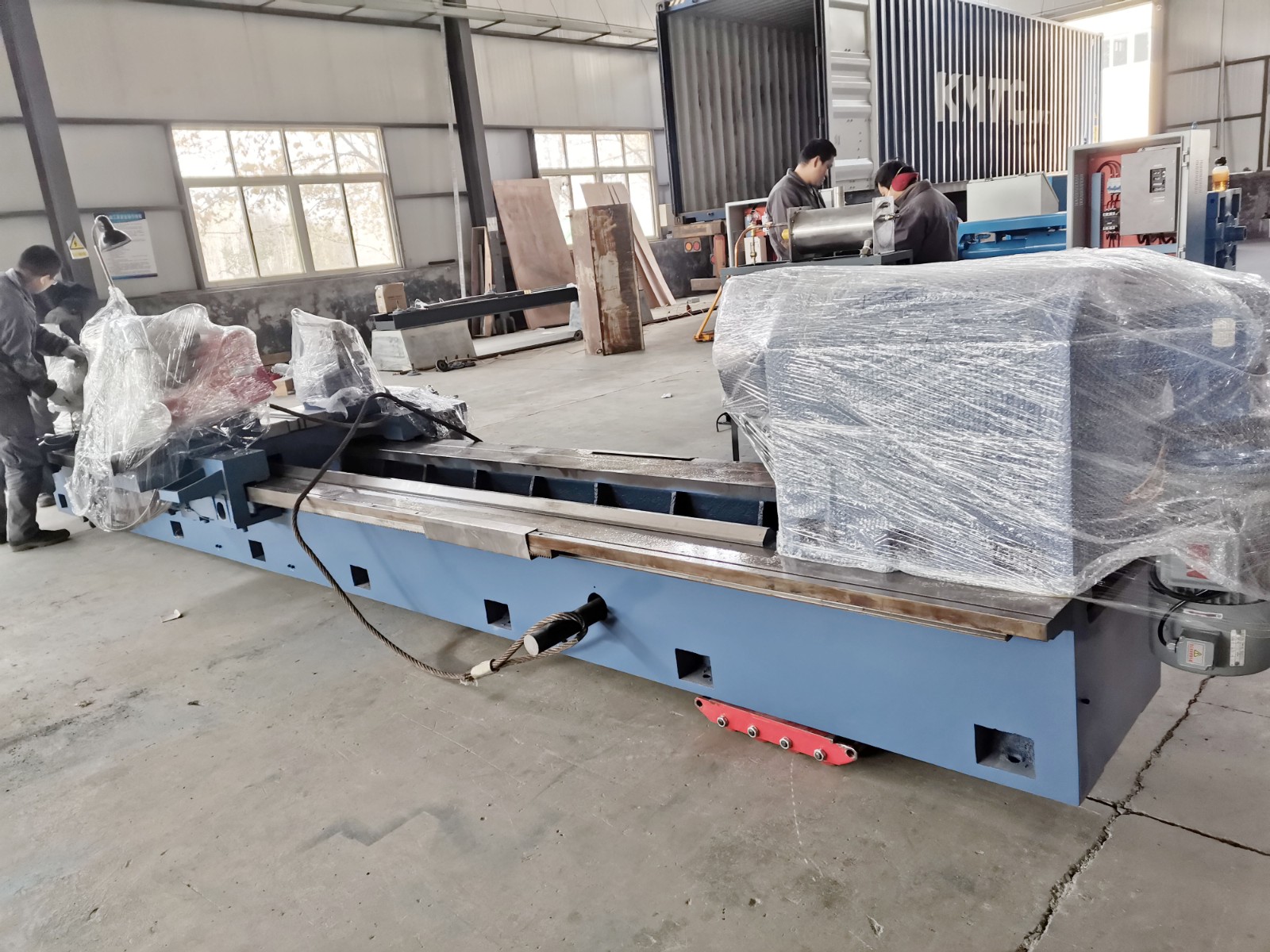

Shipping photos:


Product form
