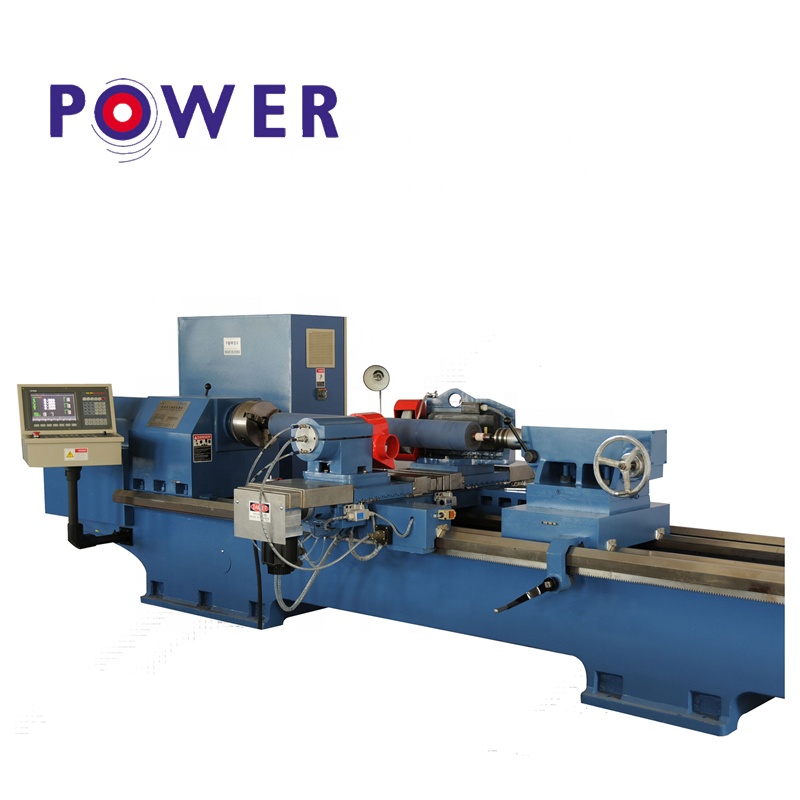

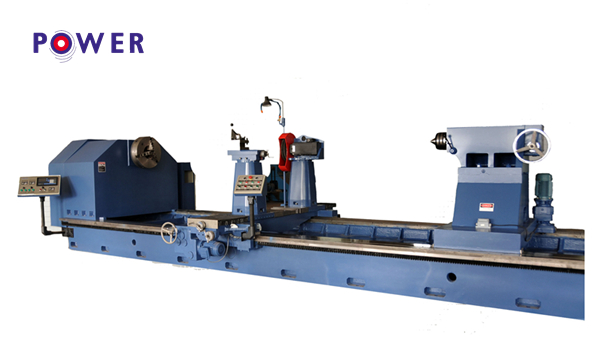

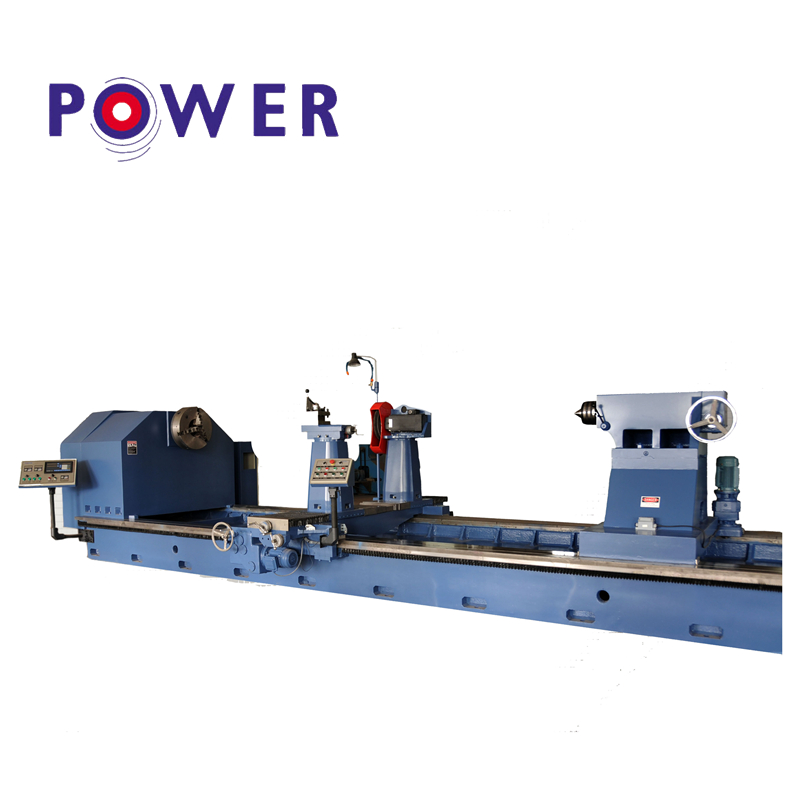

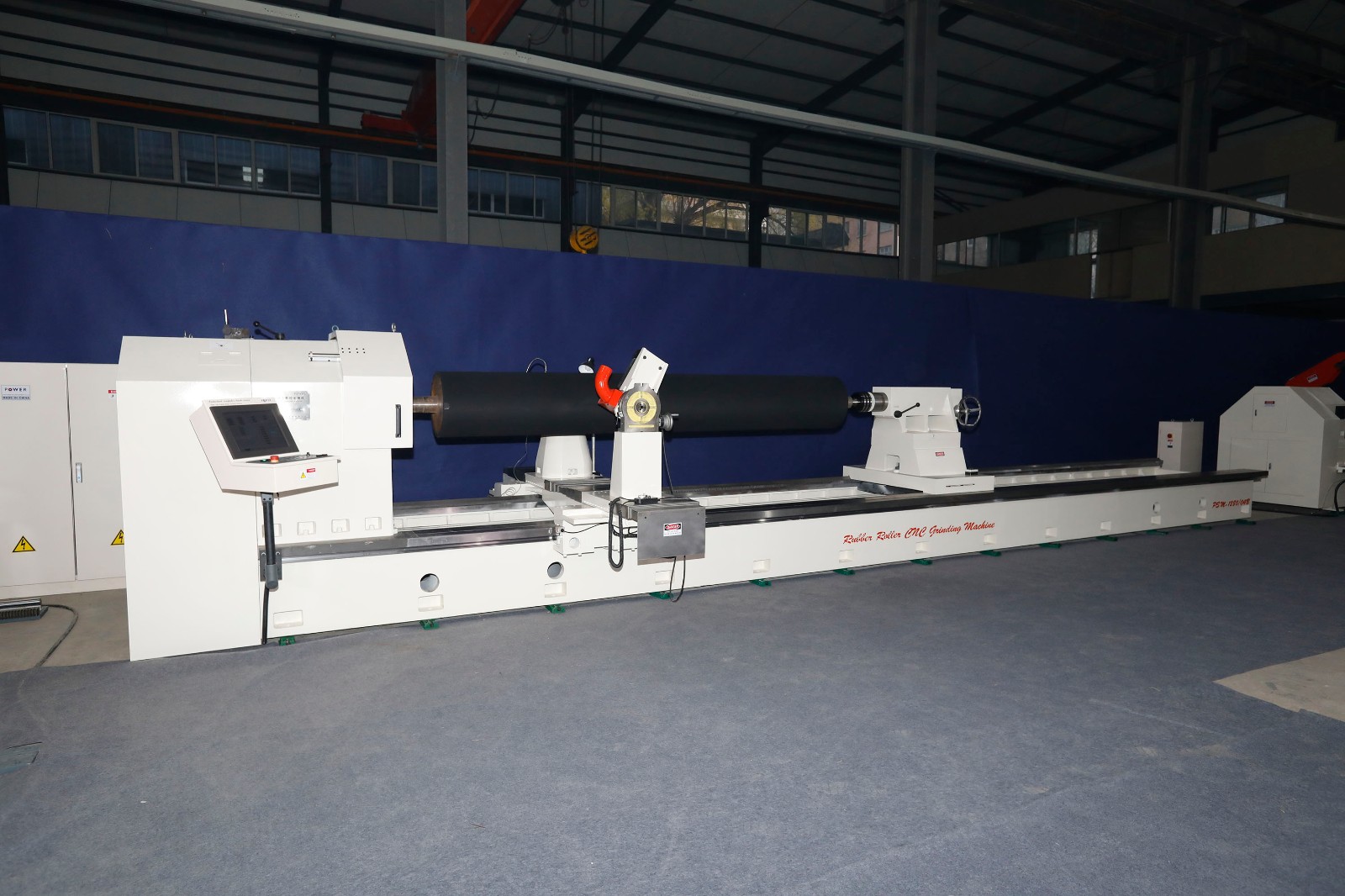

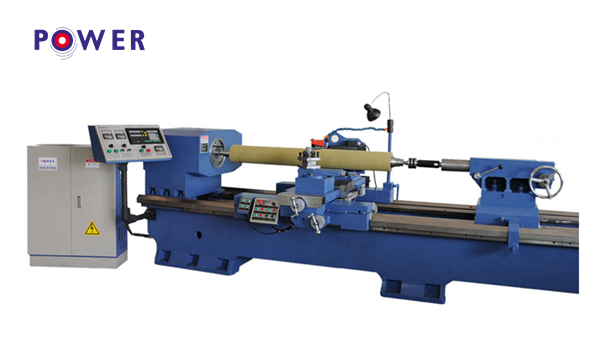

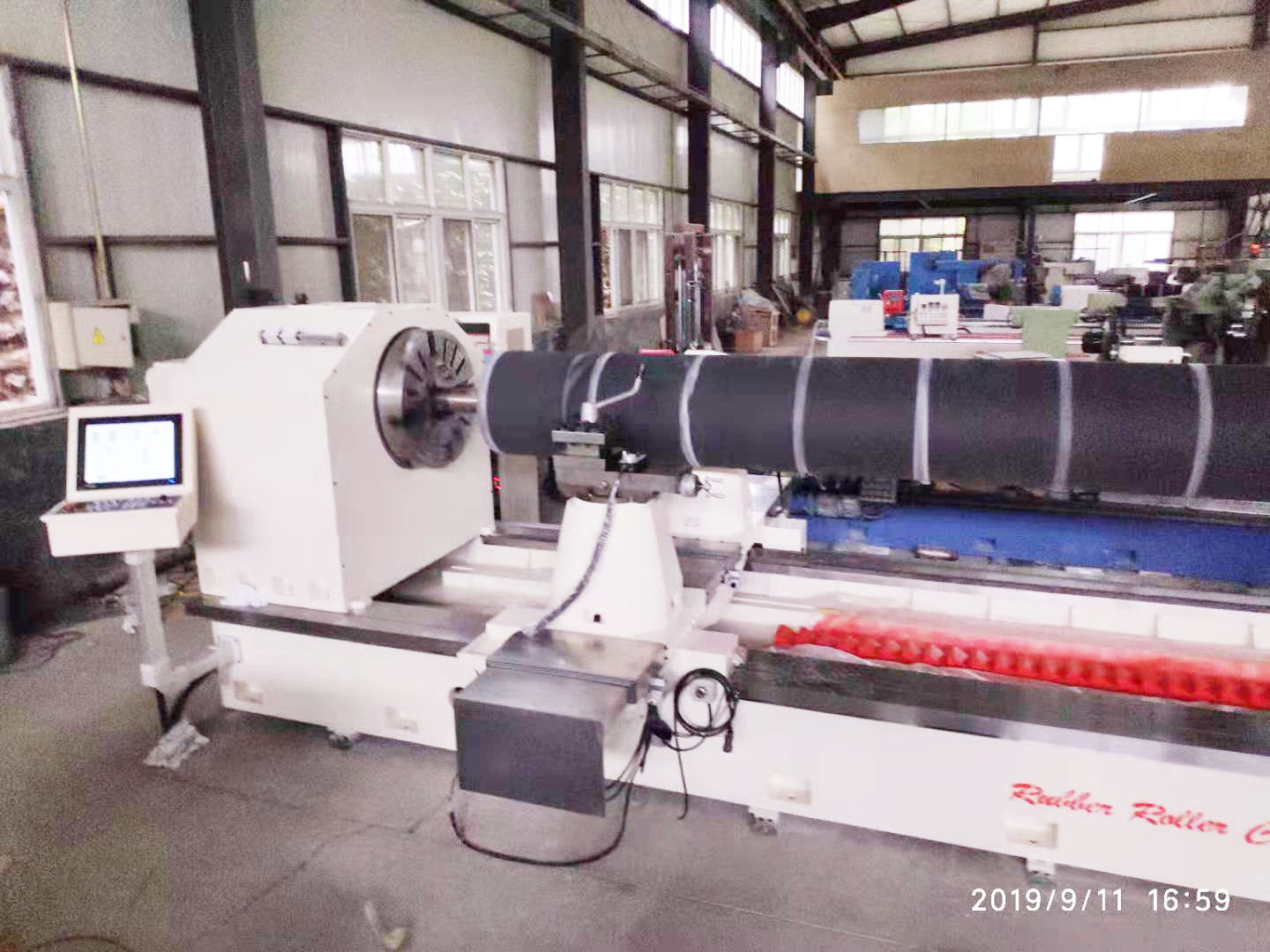

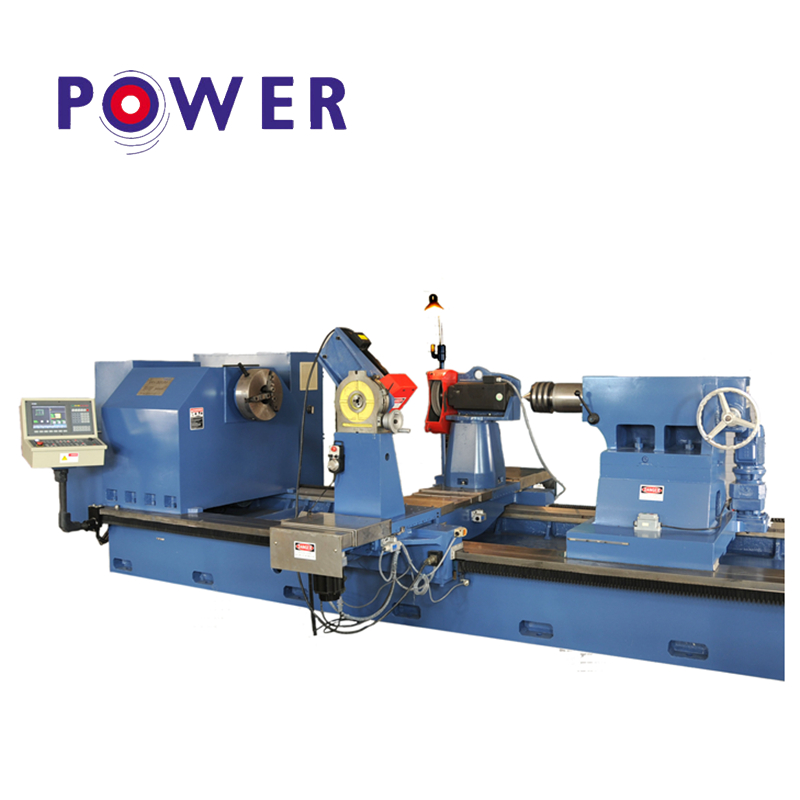

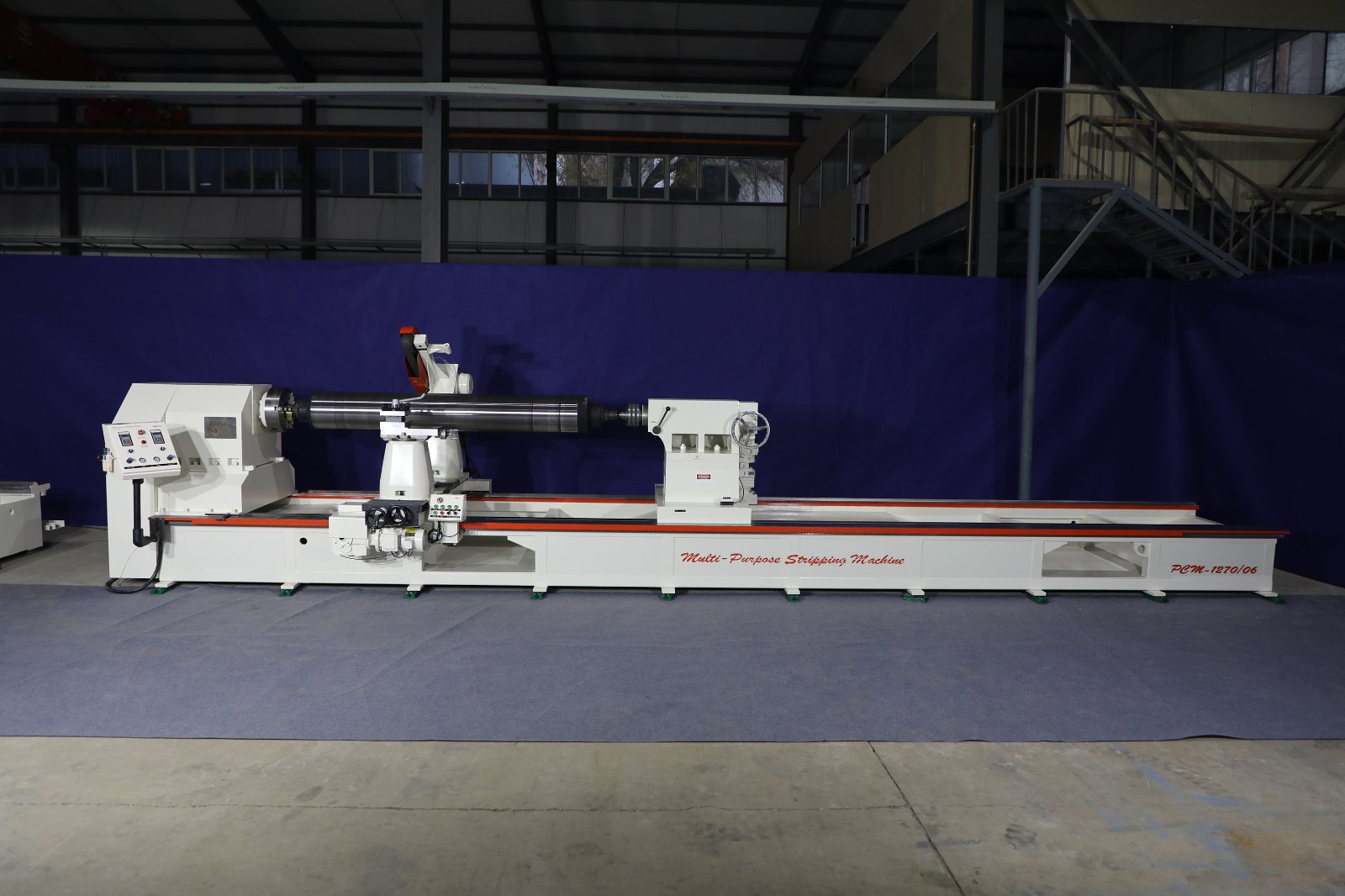

General Rubber Roller Grinding Machine

PSM collection rubber curler grinding system is eparticularly designed and synthetic to update the beyond curler processing technique via way of means of metal production equipment. Mounted grinding head at the engine lathe is the beyond technique to fabricate curler, which the best of curler is tough to attain the requirement of the prevailing standard. The fundamental cause lies withinside the shape of lathe. After all, it isn't always the grinding system; the transferring areas of the large and medium carriage desk are large than that of grinding system. Therefore, vibration can be produced at the same time as withinside the grinding processing, so one can generate ripple on the floor of processing rollers. Further, because of the width restrict of the guide-rail of lathe, the manner of installed grinding head is hardly ever to make certain the stableness at the same time as in operation.

1. Standard equipment of PSM series includes:

a. a full flood recirculating coolant system

b. motorized tailstock

c. variable speed traverse and spindle drives

d. front and rear independently operated carriage tables

e. a direct drive grinding head mounted on the rear

2. Specially designed to replace the tradtional roller grinding process method.

3. Two medium carriage tables assembled to ensure accurate performance and operating stability.

4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.

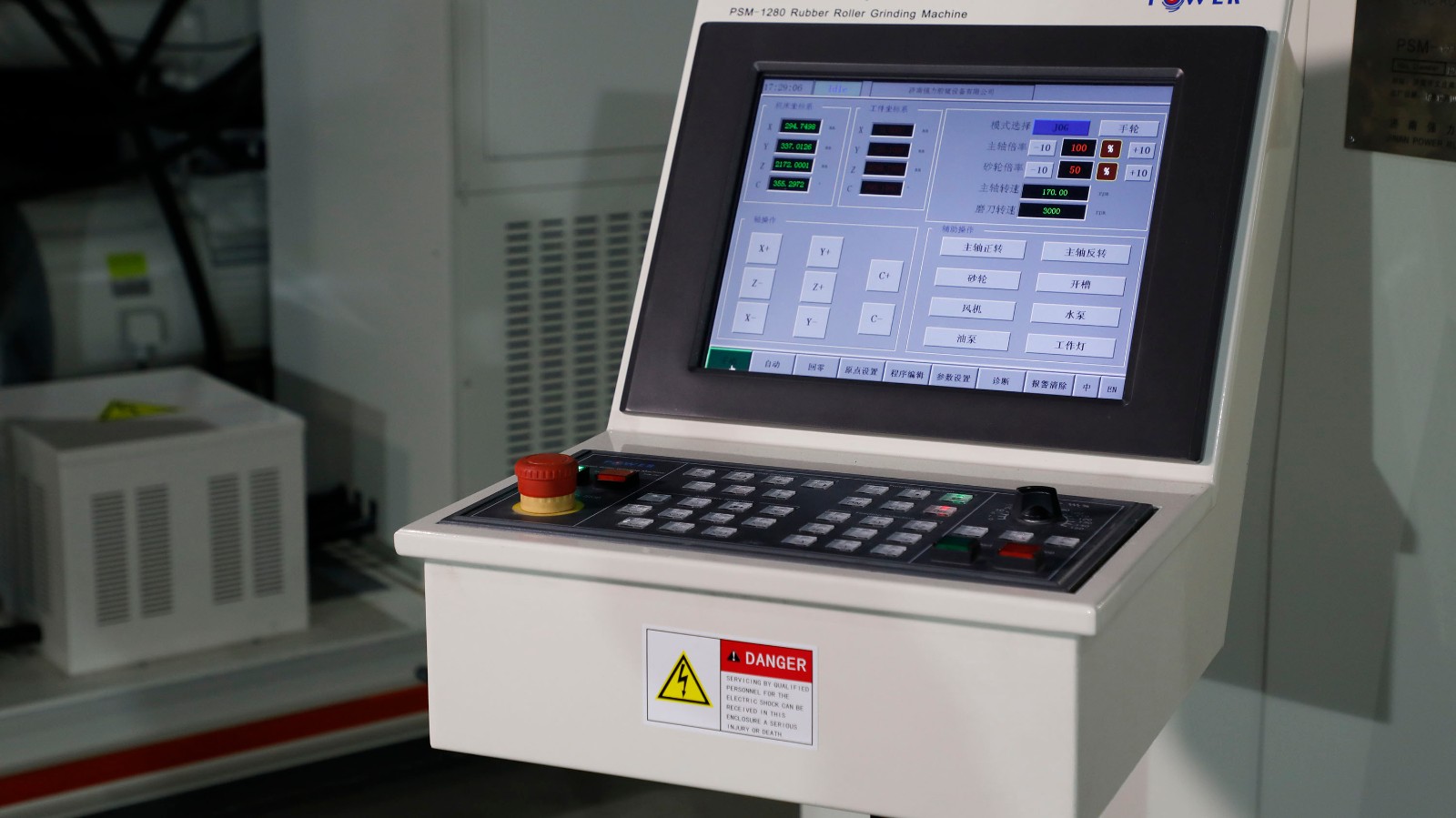

5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.

6. Capable of realizing expansion of processing of special-shaped Rubber Rollers.

Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Shipping detail:

Within 2-4 weeks

Equipment video：

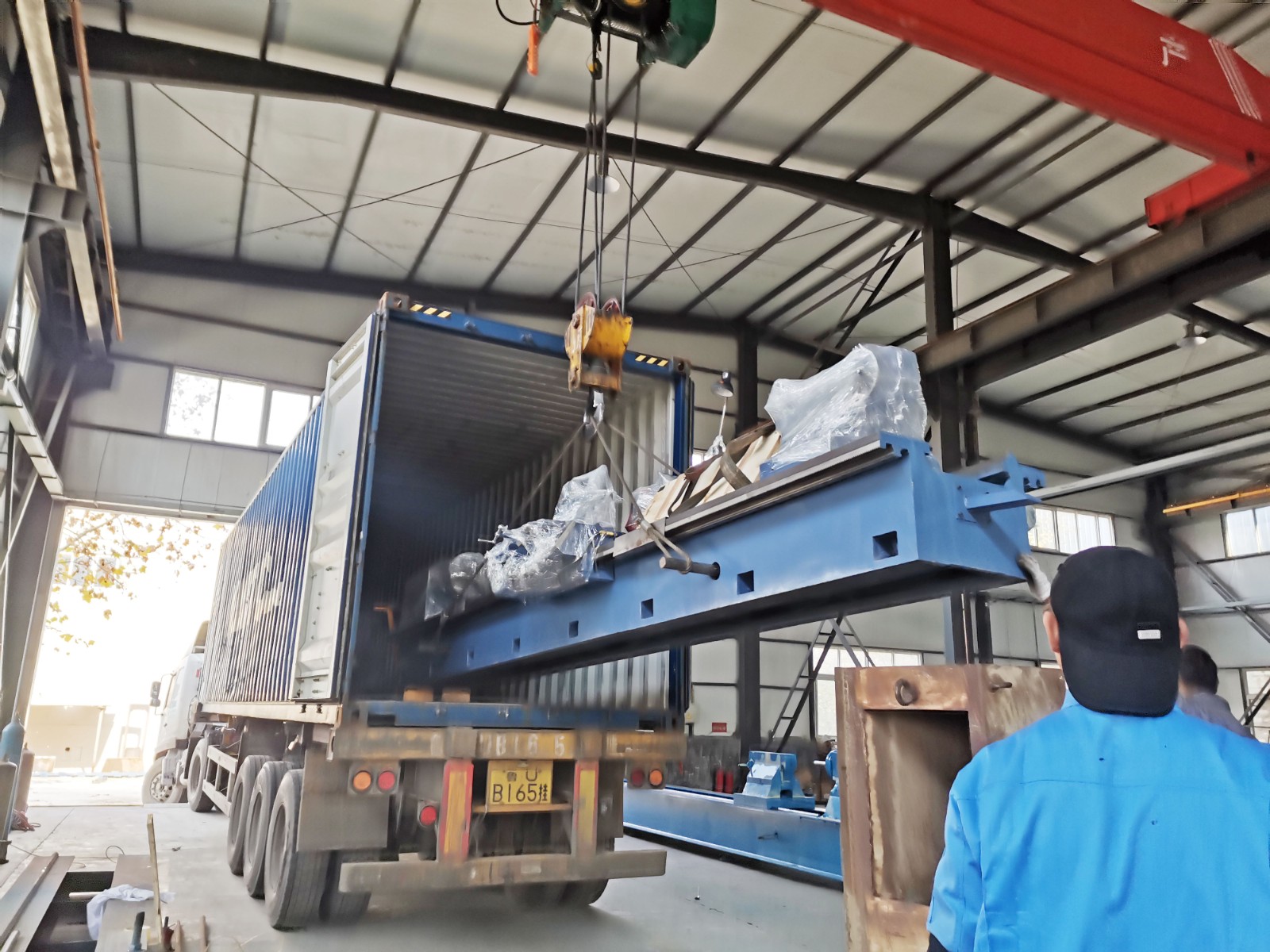

Shipping photos：
