Grinding Machine for Rubber Roller Making

Payment Type:       L/C,T/T,Money Gram,Western Union

Incoterm:                FOB,CFR,CIF,EXW

Min. Order:            1 Set/Sets

Delivery Time:        40 Days

Transportation:       Ocean


  Contact Now
Product Details

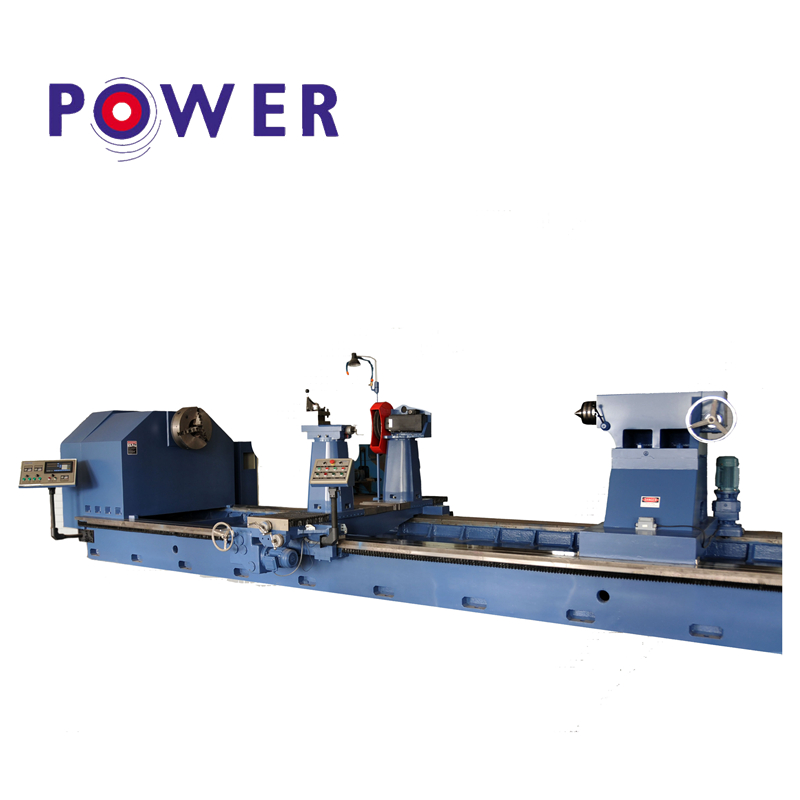

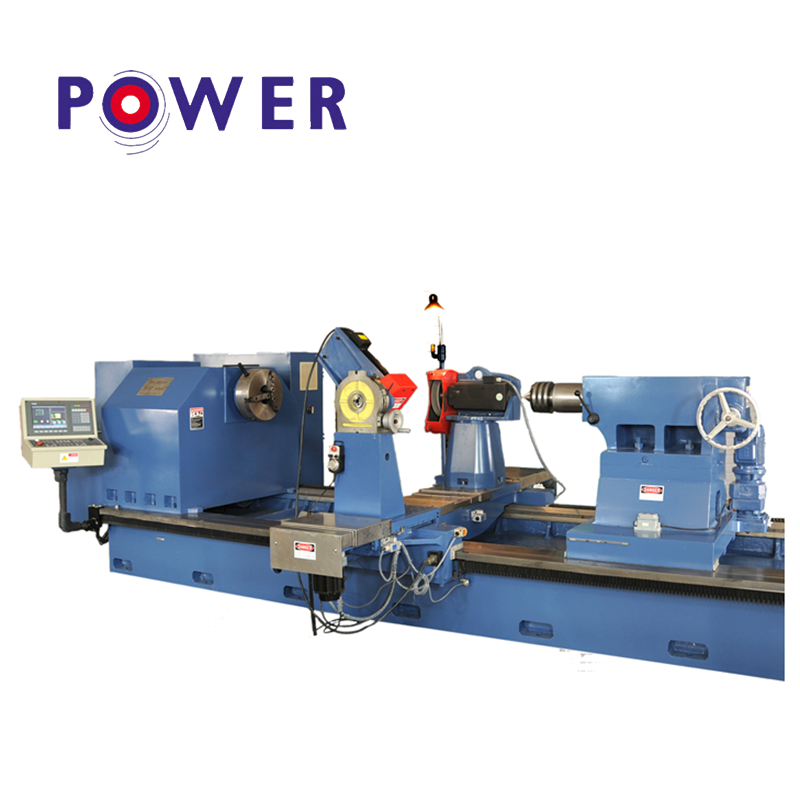

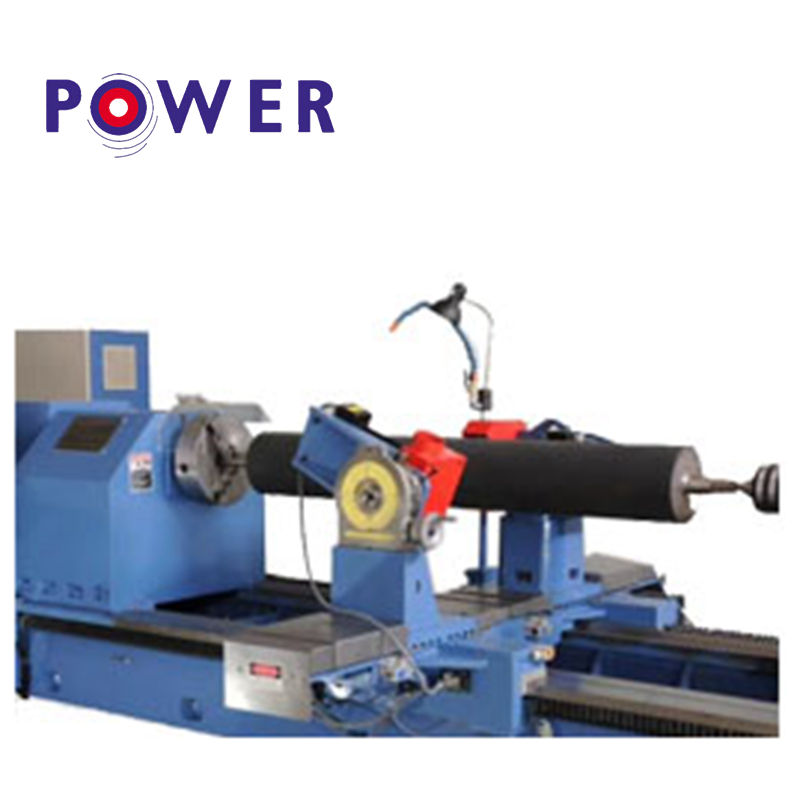

Grinding Machine for Rubber Roller Making

The feature of PSM series Grinding Machine for Rubber Roller Making


PSM series Factory Automatic Cylindrical Roll Grinder is specially designed and manufactured to replace the past roller processing method by metallic manufacturing equipment. Mounted grinding head on the engine lathe is the past method to manufacture roller, which the quality of roller is difficult to reach the requirement of the present standard. The main reason lies in the structure of lathe. After all, it is not the Grinding Machine; the moving spaces of the big and medium carriage table are larger than that of grinding machine. Therefore, vibration may be produced while in the grinding processing, which will generate ripple at the surface of processing rollers. Further, due to the width limit of the guide-rail of lathe, the way of mounted grinding head is hardly to ensure the stability while in operation.

1. Standard equipment of PSM series includes:
a. a full flood recirculating coolant system
b. motorized tailstock
c. variable speed traverse and spindle drives
d. front and rear independently operated carriage tables
e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped Rubber Rollers.


MODEL

SPECIFICATION

MAX. DIAMETER

MAX. LENGTH

CUBAGE

POWER

LIGHT SCALE

PSM-4020-CNC

16"

400mm

80"

2000mm

158"*63"*55"

4m*1.6m*1.4m

17KW

STANDARD

PSM-8040-CNC

32"

800mm

158"

4000mm

256"*71"*63"

6.5m*1.8m*1.6m

22KW

HEAVY DUTY

PSM-1260-CNC

47"

1200mm

236"

6000mm

315"*79"*71"

8.0m*2.0m*1.8m

26KW

LARGE SCALE

PSM-1680-CNC

63"

1600mm

315"

8000mm

433"*95"*71"

11m*2.4m*1.8m

32KW




Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film


Shipping detail:

Within 2-4 weeks


Equipment video:

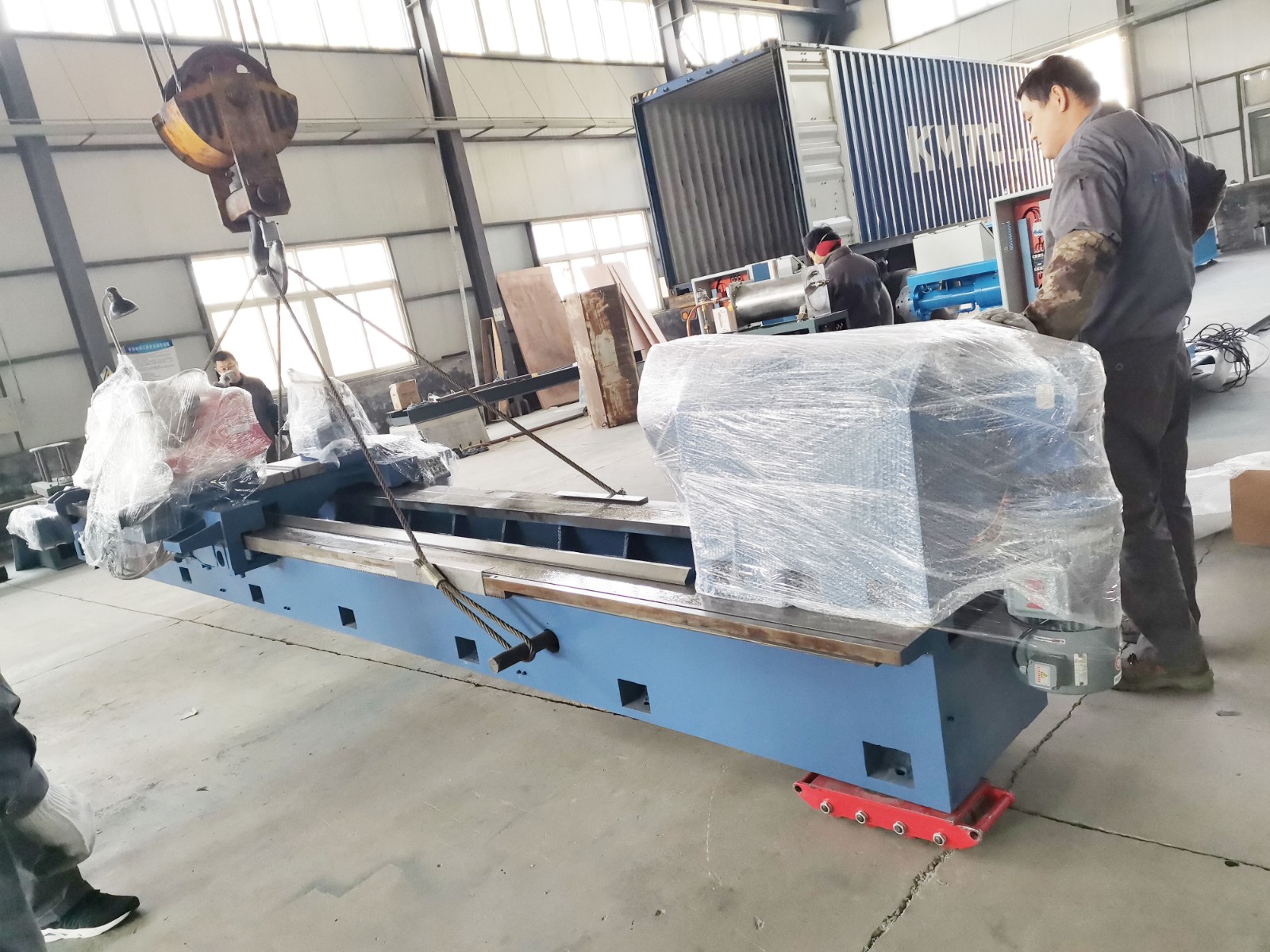

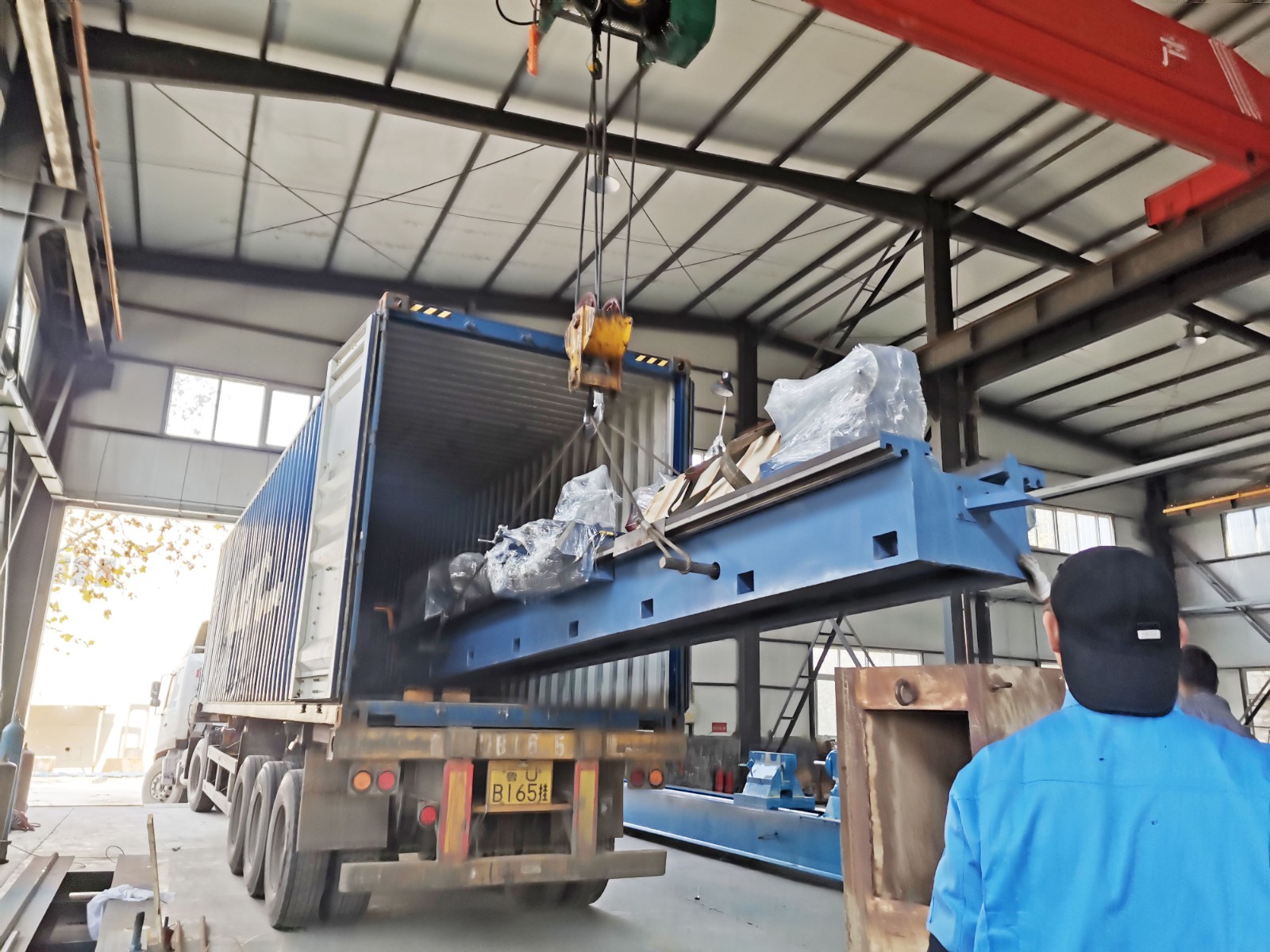

Shipping photos :

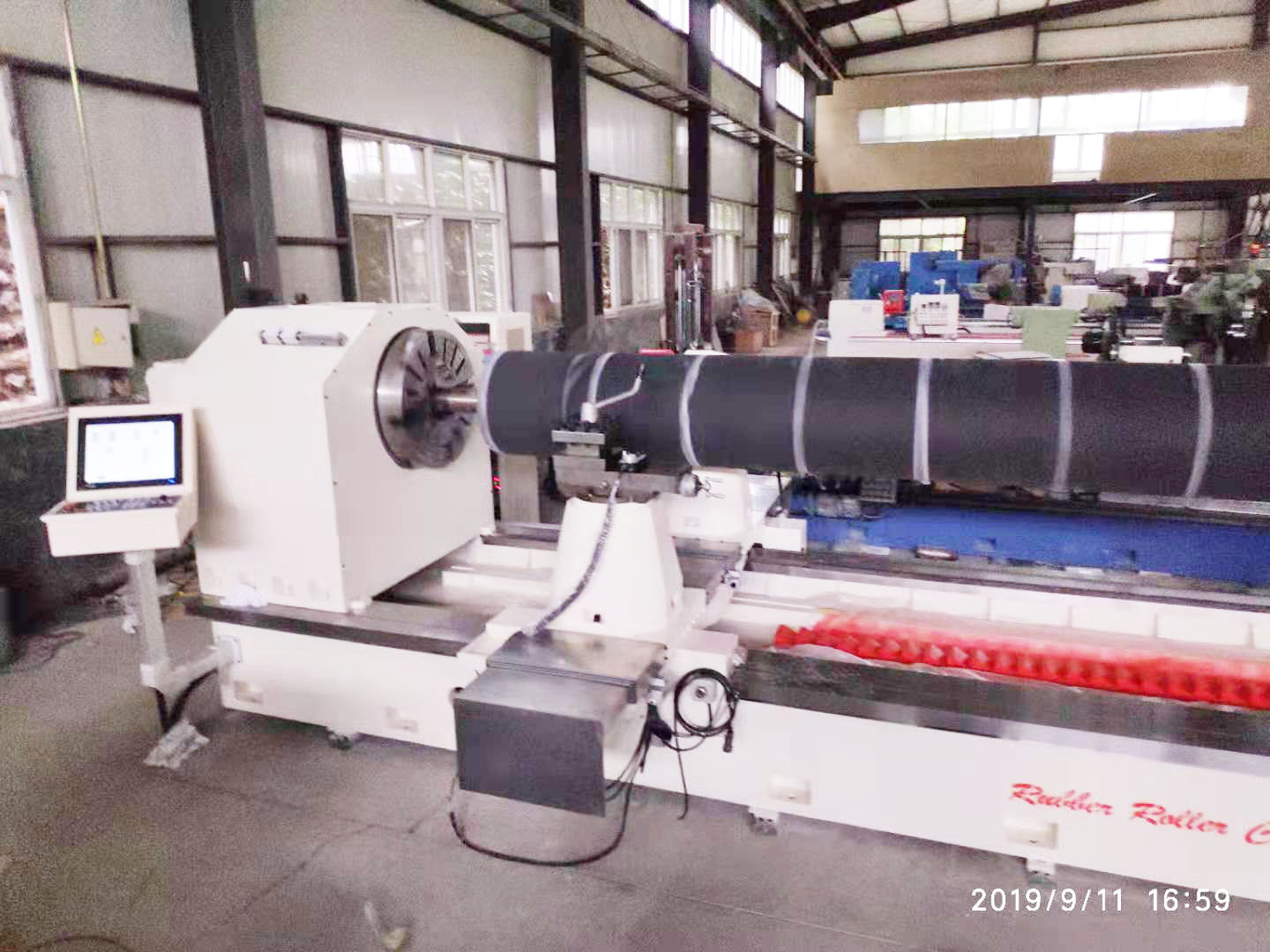

Product form
