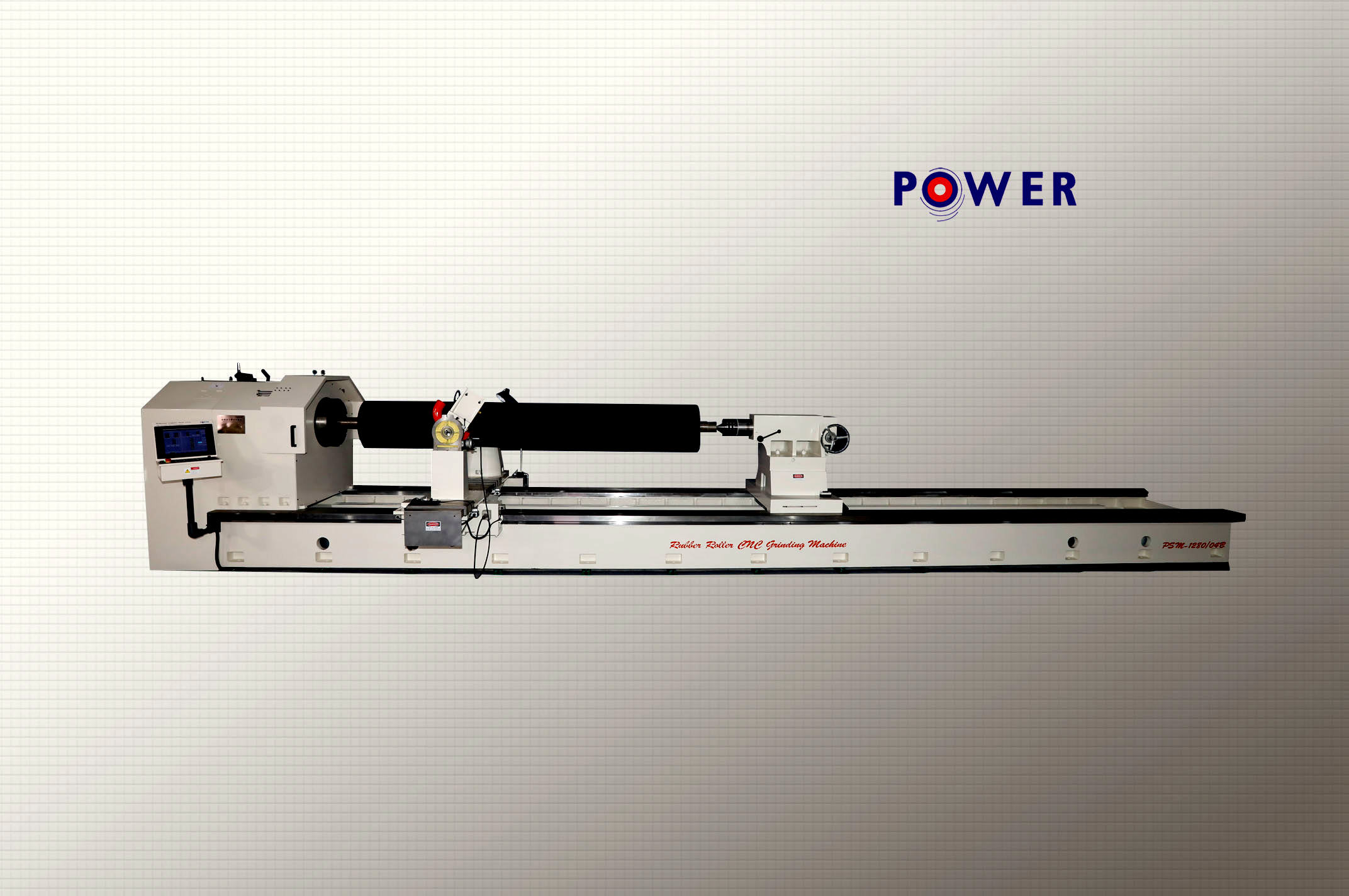

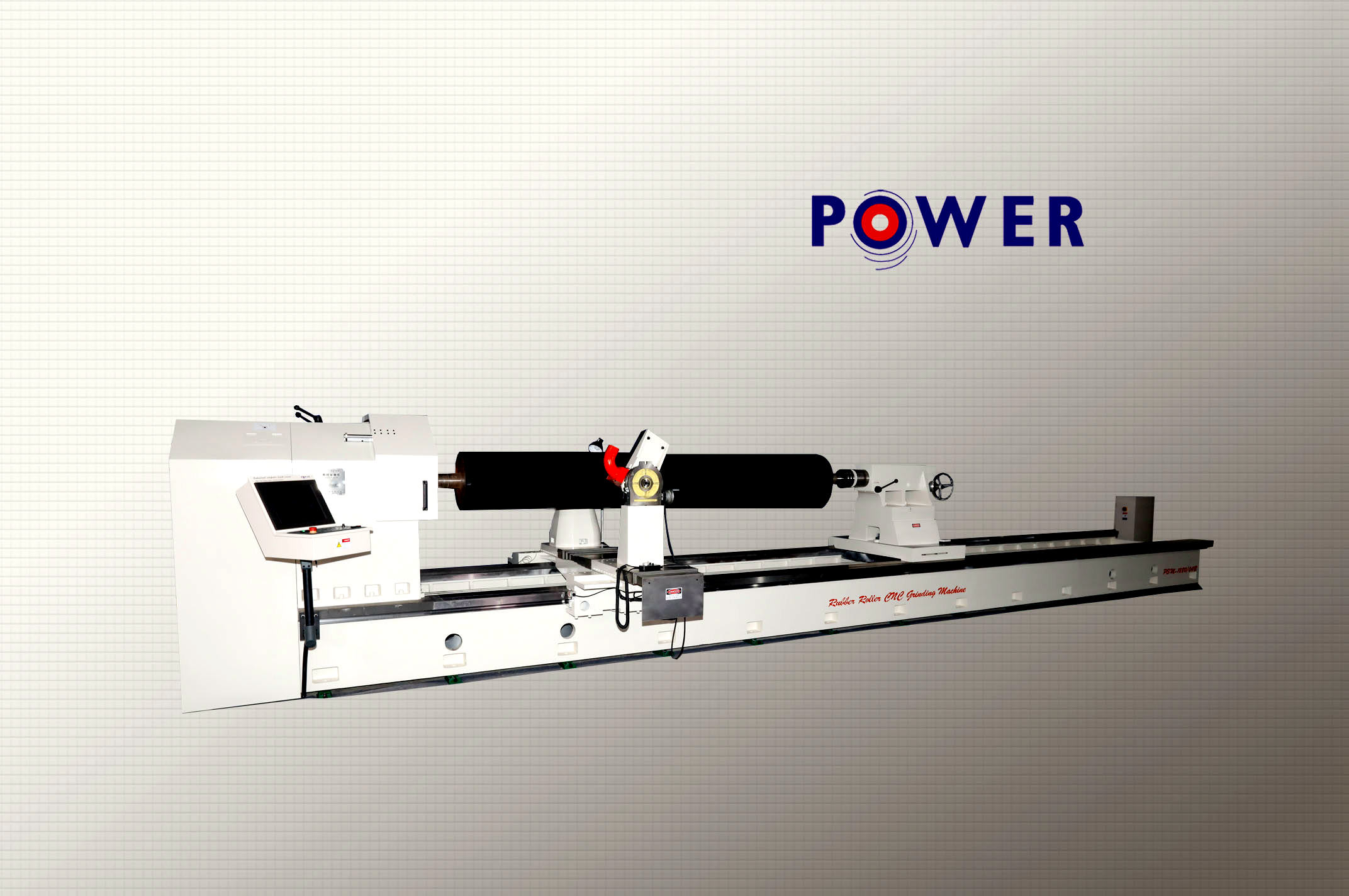

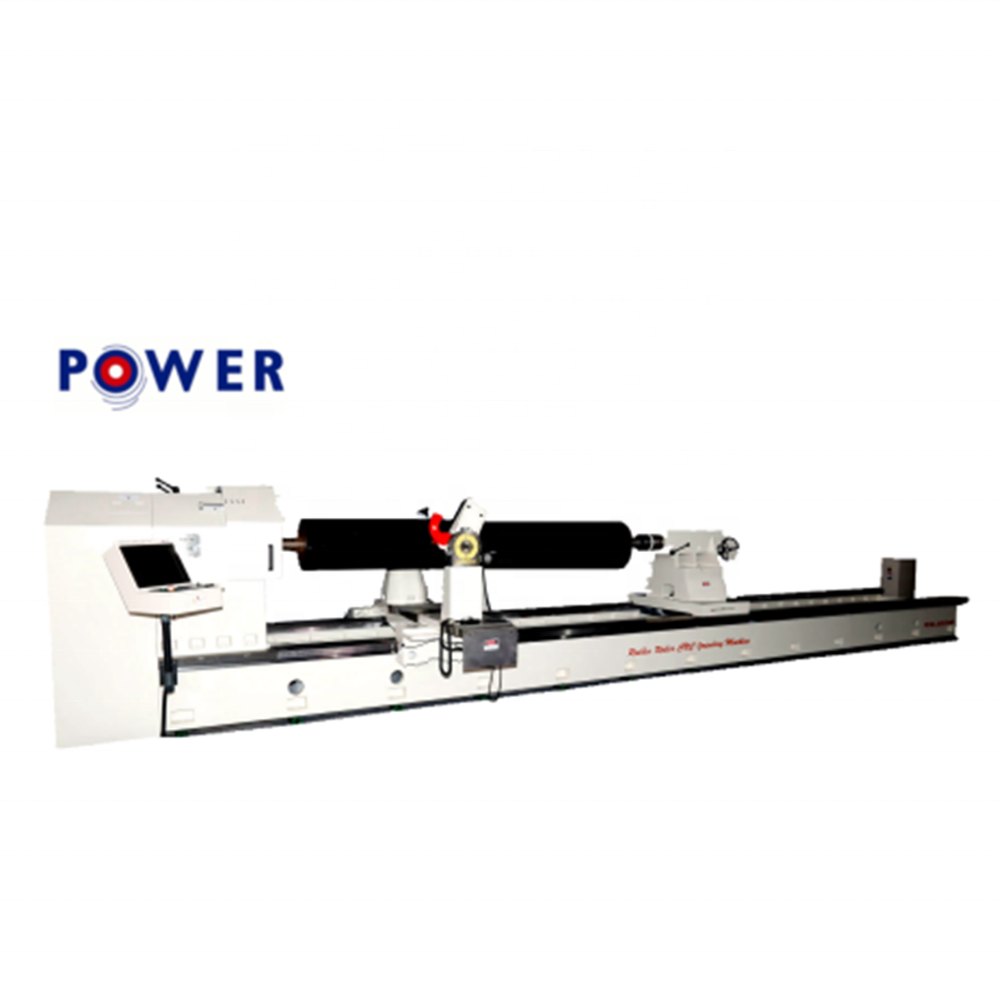

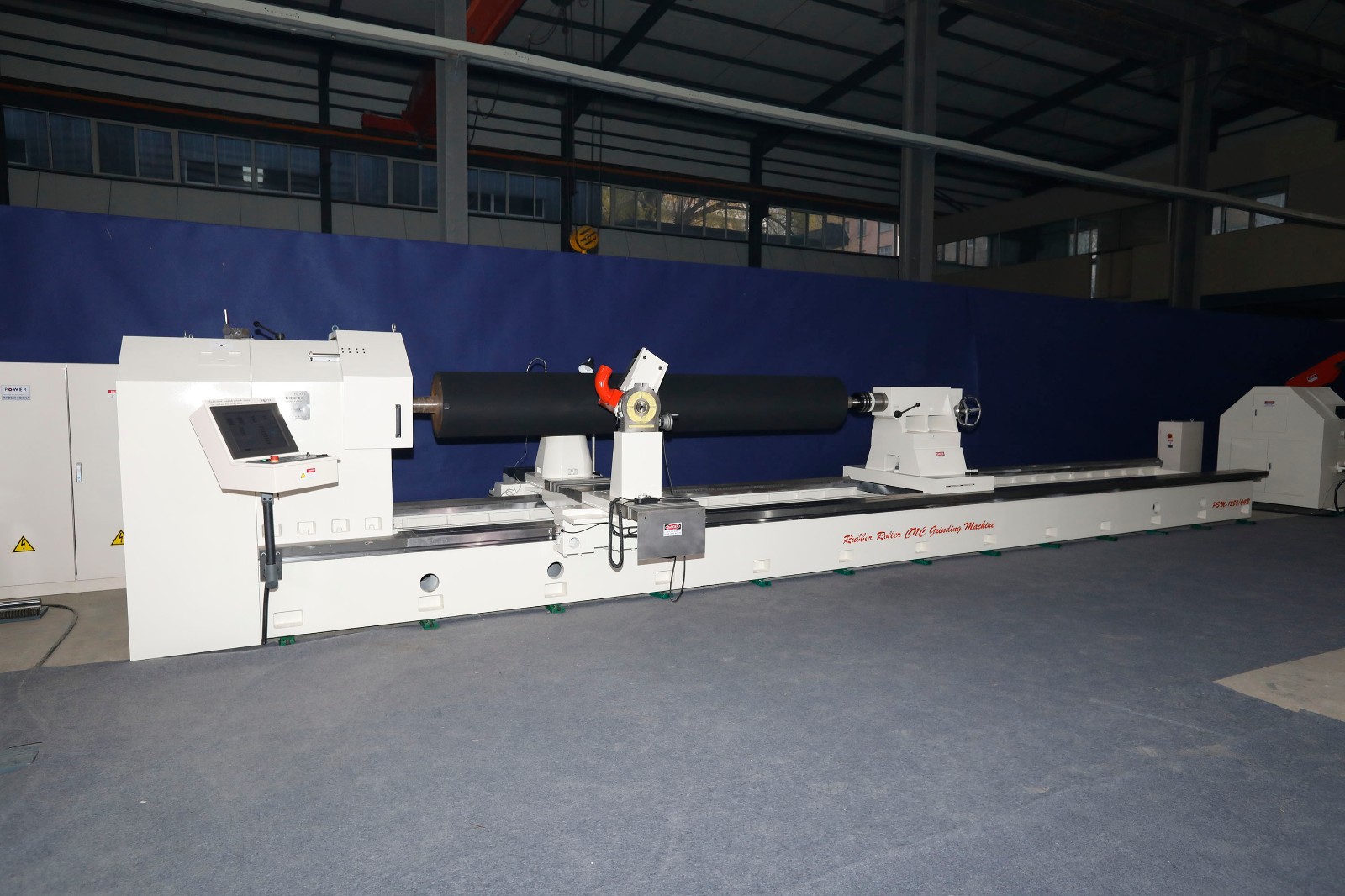

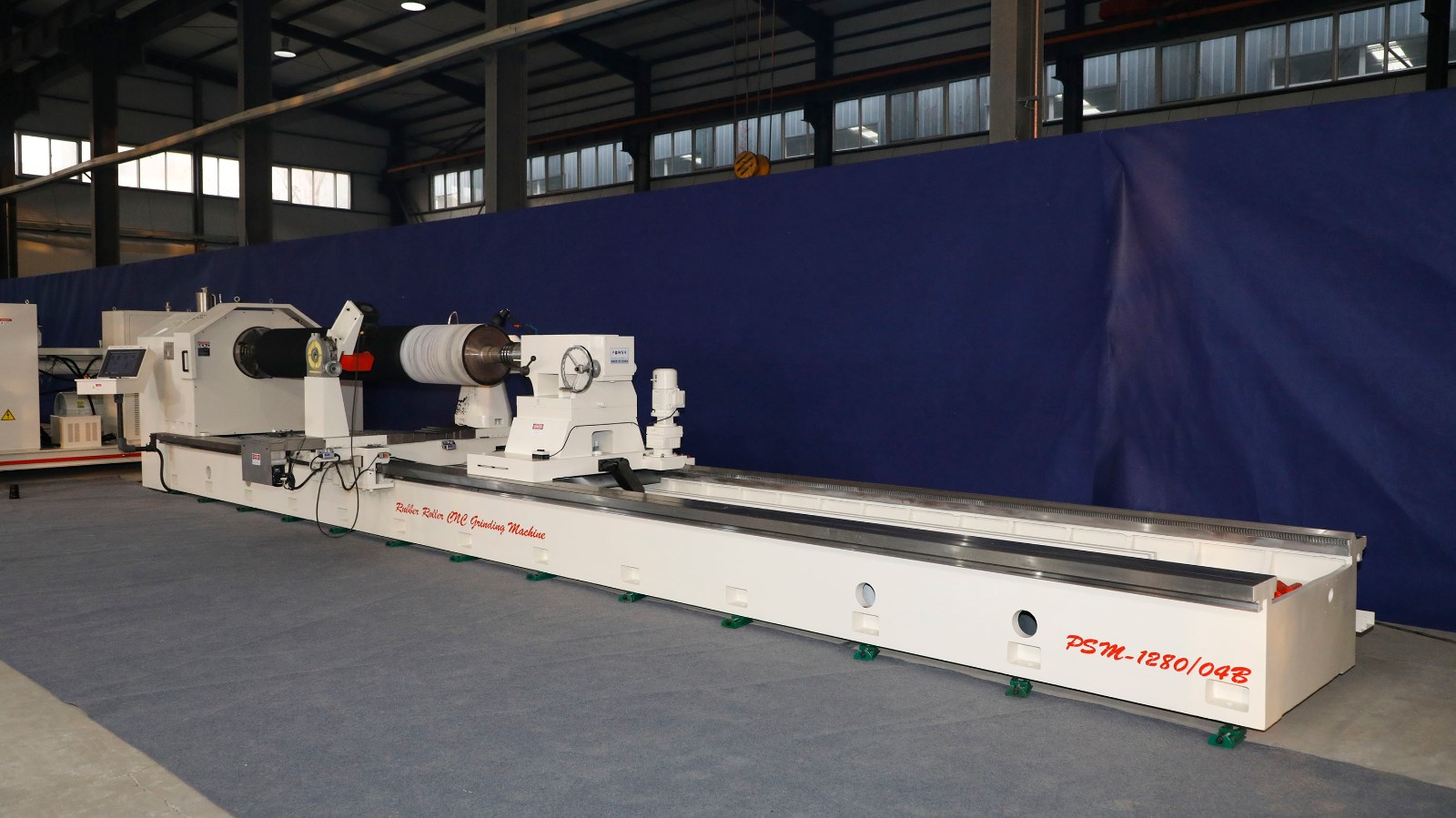

CNC Rubber Roller Surface Grinding Machine

PSM-8040 General Rubber Roller Surface Grinding Machine

PSM series rubber roller grinding system is in particular designed and artificial to update the past curler processing technique with the aid of using the usage of manner of metallic manufacturing device. set up grinding head at the engine lathe is the beyond approach to manufacture roller, which the brilliant of roller is tough to benefit the requirement of the triumphing full-size. the number one reason lies withinside the shape of lathe. ultimately, it isn't always the grinding machine; the transferring regions of the massive and medium carriage desk are massive than that of grinding device. therefore, vibration can be produced whilst withinside the grinding processing, for you to generate ripple on the floor of processing rollers. in addition, because of the width restriction of the manual-rail of lathe, the manner of installation grinding head is rarely to make certain the stableness at the same time as in operation.

1. Standard equipment of PSM series includes:

     a. a full flood recirculating coolant system

     b. motorized tailstock

     c. variable speed traverse and spindle drives

     d. front and rear independently operated carriage tables

     e. a direct drive grinding head mounted on the rear

2. Specially designed to replace the tradtional roller grinding process method.

3. Two medium carriage tables assembled to ensure accurate performance and operating stability.

4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.

5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.

6. Capable of realizing expansion of processing of special-shaped rubber rollers.
