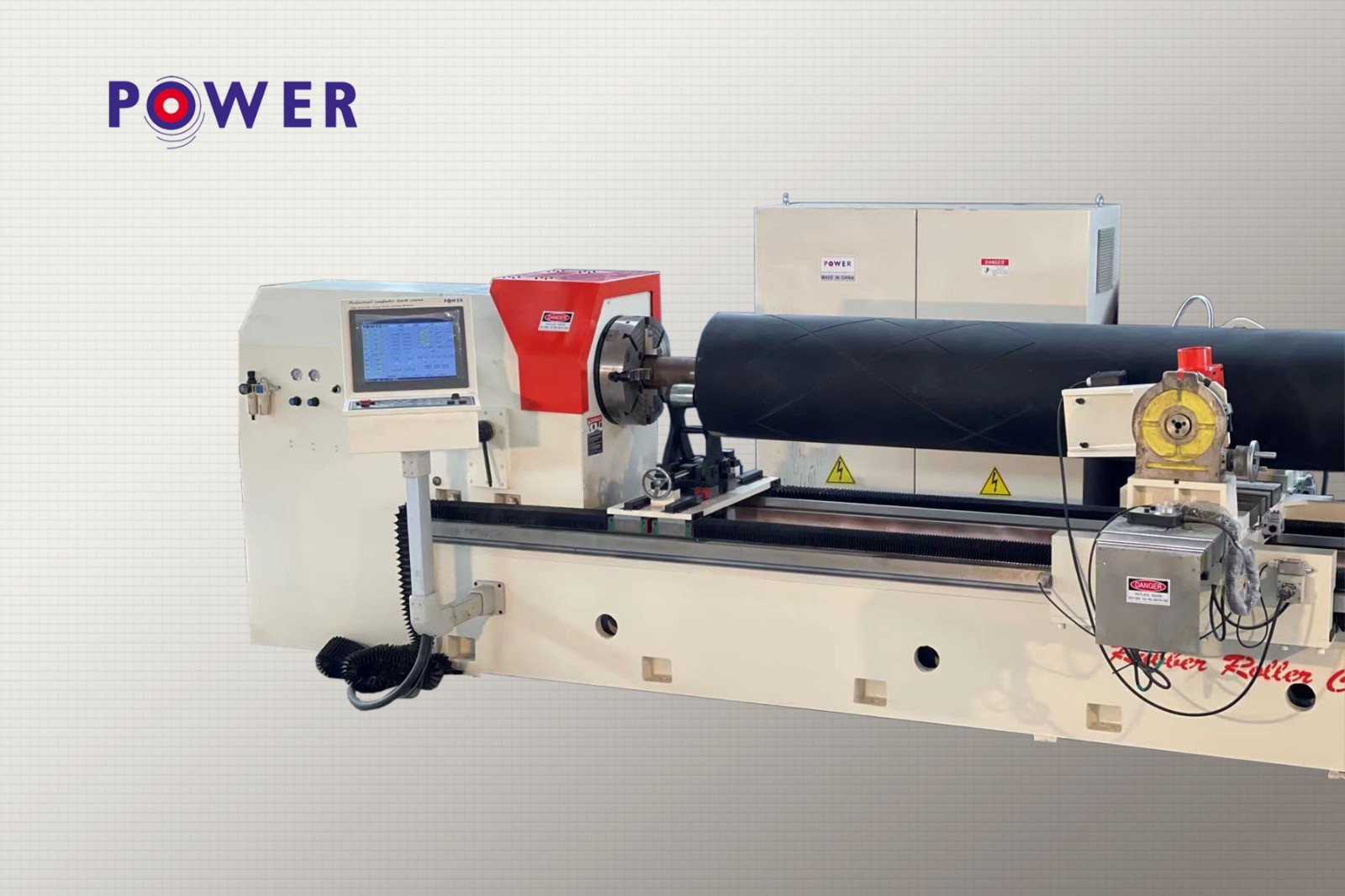

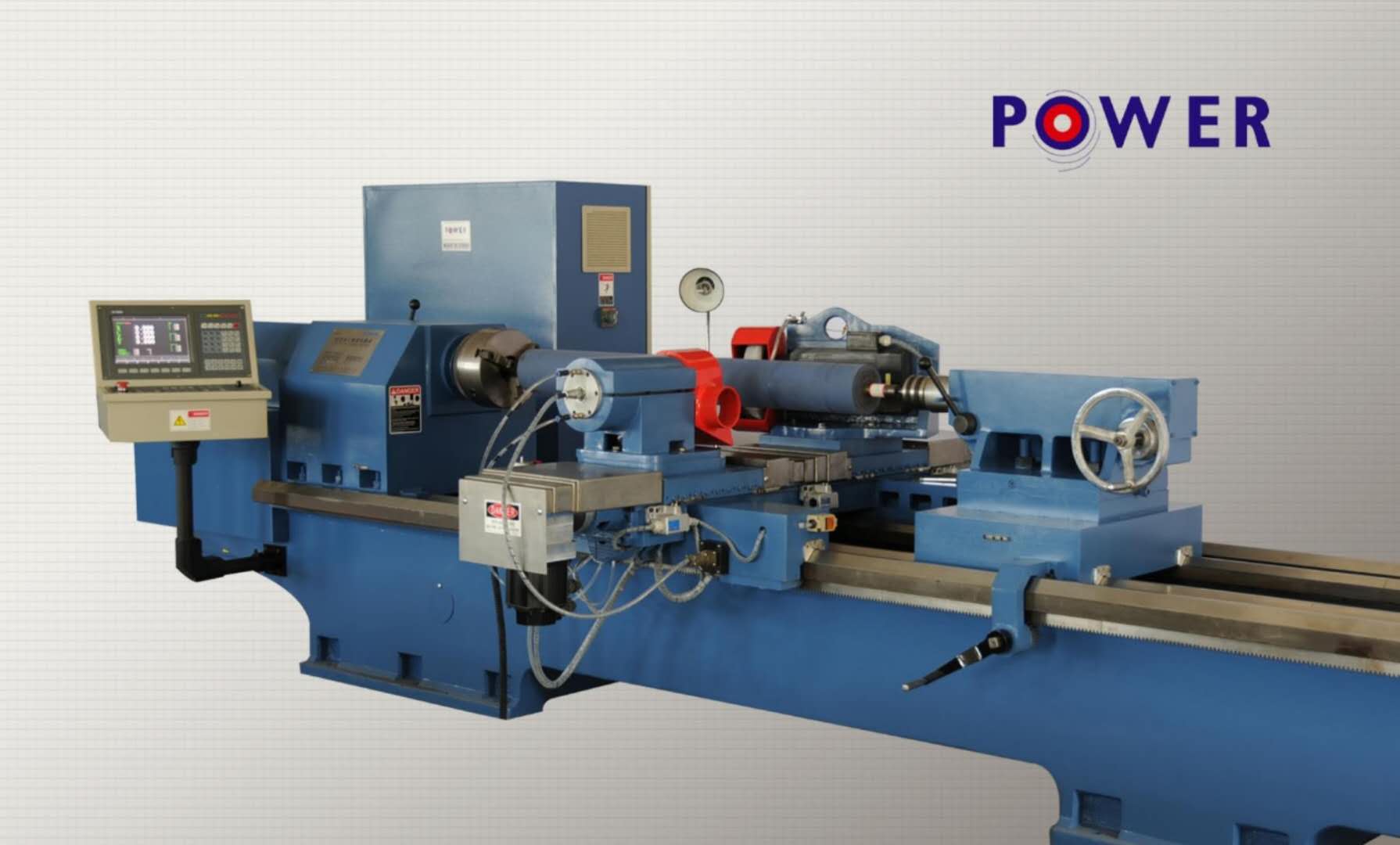

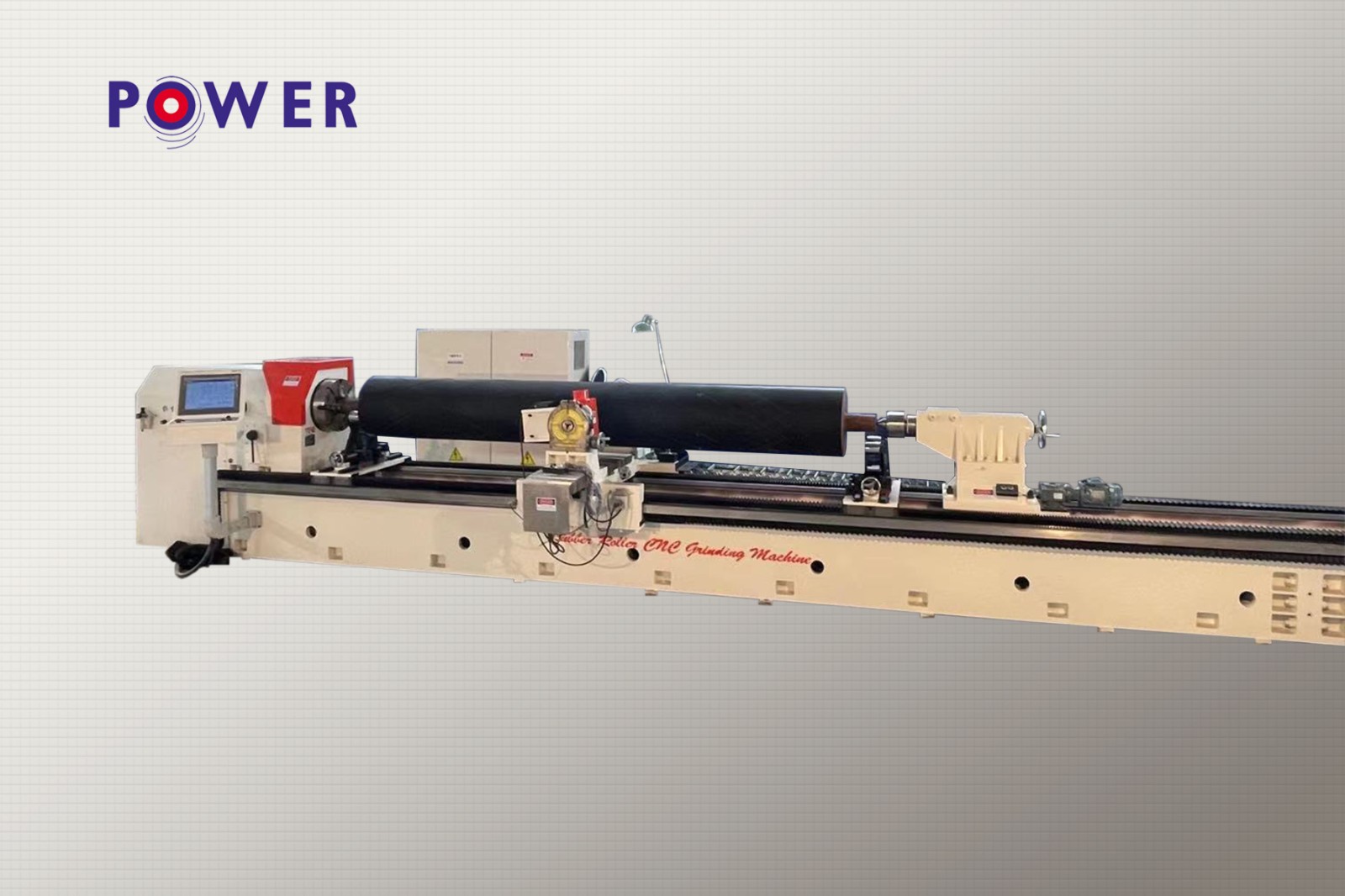

PSM-8040 General Rubber Roller Surface Grinding Machine

PSM collection rubber curler grinding gadget is mainly designed and synthetic to replace the beyond roller processing approach by using way of steel production device. installation grinding head on the engine lathe is the past technique to fabricate curler, which the first-rate of curler is difficult to gain the requirement of the prevailing full-size. the primary purpose lies within the form of lathe. ultimately, it is not the grinding machine; the shifting areas of the large and medium carriage table are huge than that of grinding device. therefore, vibration may be produced while in the grinding processing, with a purpose to generate ripple at the ground of processing rollers. in addition, due to the width limit of the manual-rail of lathe, the way of set up grinding head is hardly ever to make sure the stability whilst in operation.


1. Standard equipment of PSM series includes:

     a. a full flood recirculating coolant system

     b. motorized tailstock

     c. variable speed traverse and spindle drives

     d. front and rear independently operated carriage tables

     e. a direct drive grinding head mounted on the rear

2. Specially designed to replace the tradtional roller grinding process method.

3. Two medium carriage tables assembled to ensure accurate performance and operating stability.

4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.

5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.

6. Capable of realizing expansion of processing of special-shaped rubber rollers.


MODEL
SPECIFICATION
MAX. DIAMETER
MAX. LENGTH
CUBAGE
POWER
LIGHT SCALE
PSM-4020
16"
400mm
80"
2000mm
158"*55"*55"
4m*1.4m*1.4m
10KW
STANDARD
PSM-8040
32"
800mm
158"
4000mm
256"*63"*63"
6.5m*1.6m*1.6m
15KW
HEAVY DUTY
PSM-1260
47"
1200mm
236"
6000mm
315"*71"*71"
8.0m*1.8m*1.8m
18KW
LARGE SCALE
PSM-1680
63"
1600mm
315"
8000mm
433"*87"*71"
11m*2.2m*1.8m
22KW

Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Packaging & Shipping



Shipping detail:

Within 2-4 weeks

Delivery time

Equipment video:

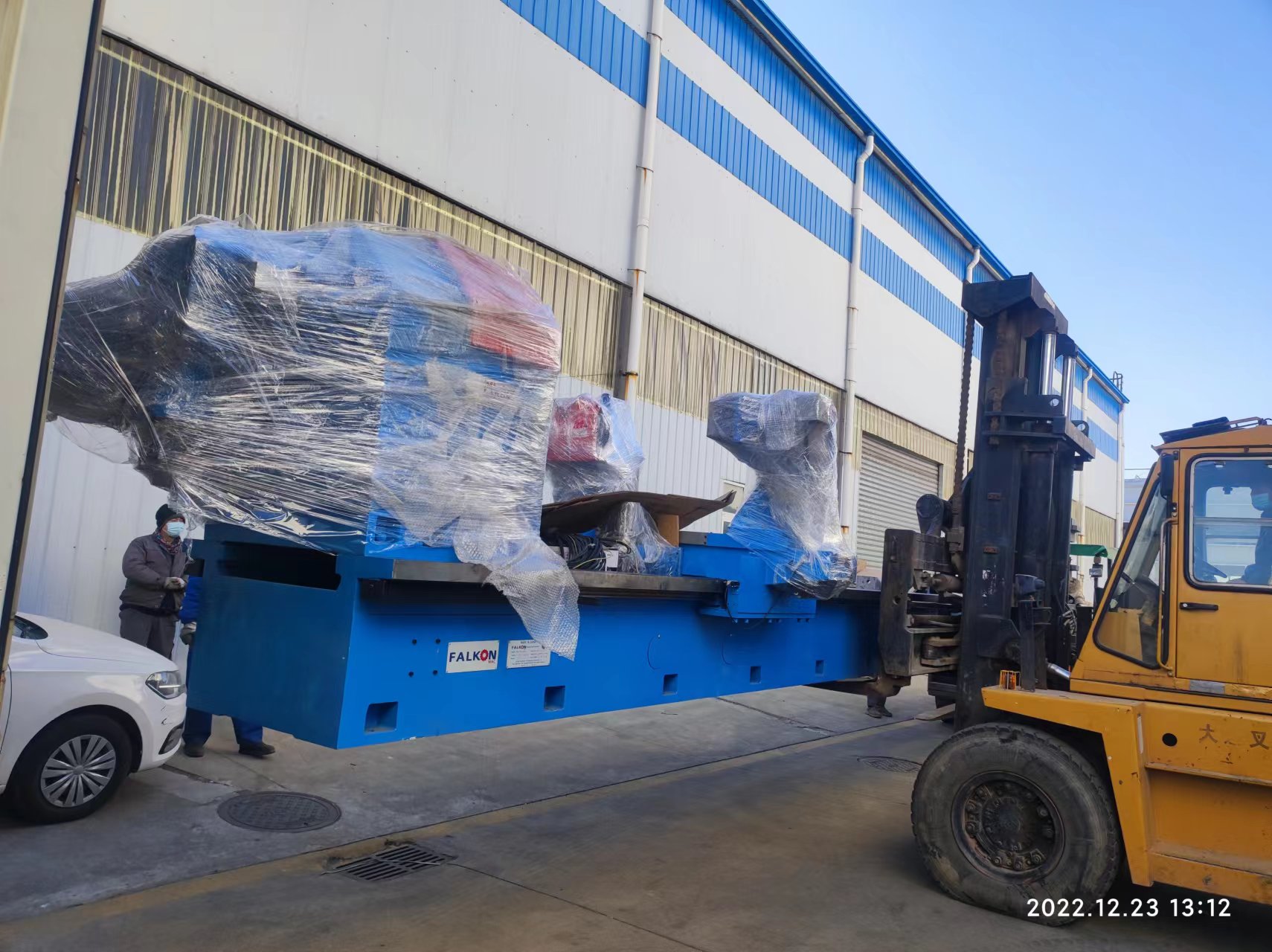

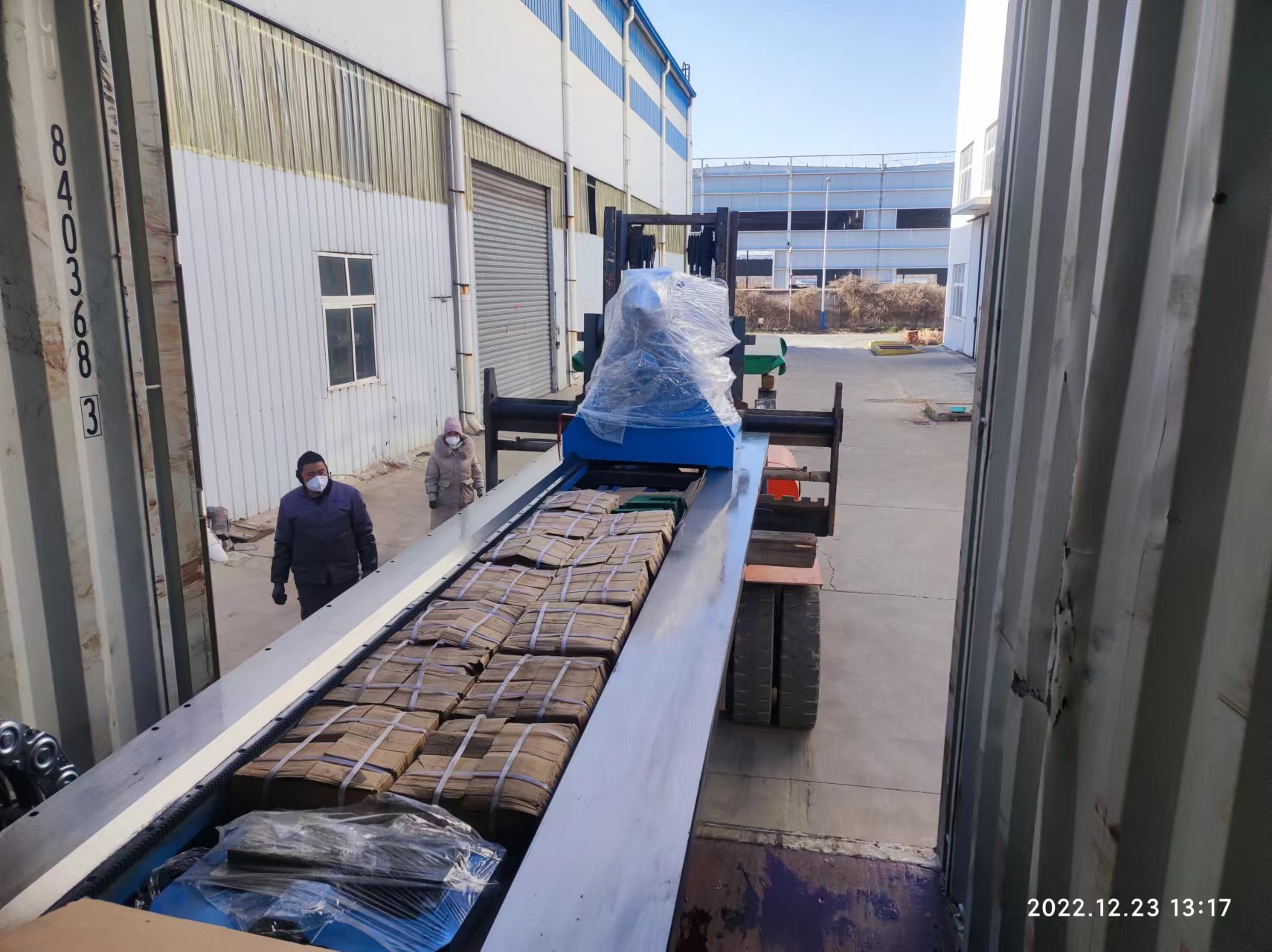

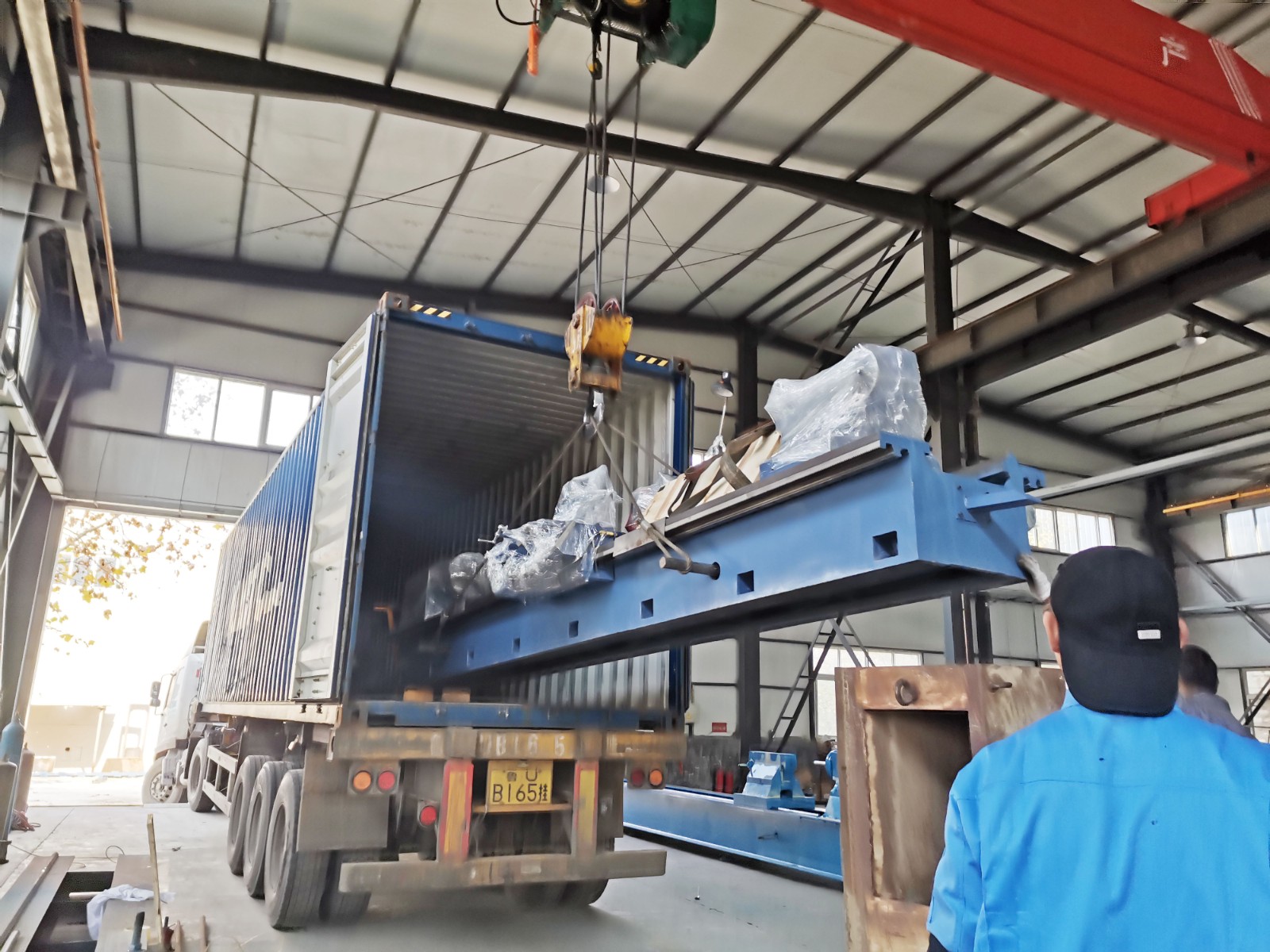

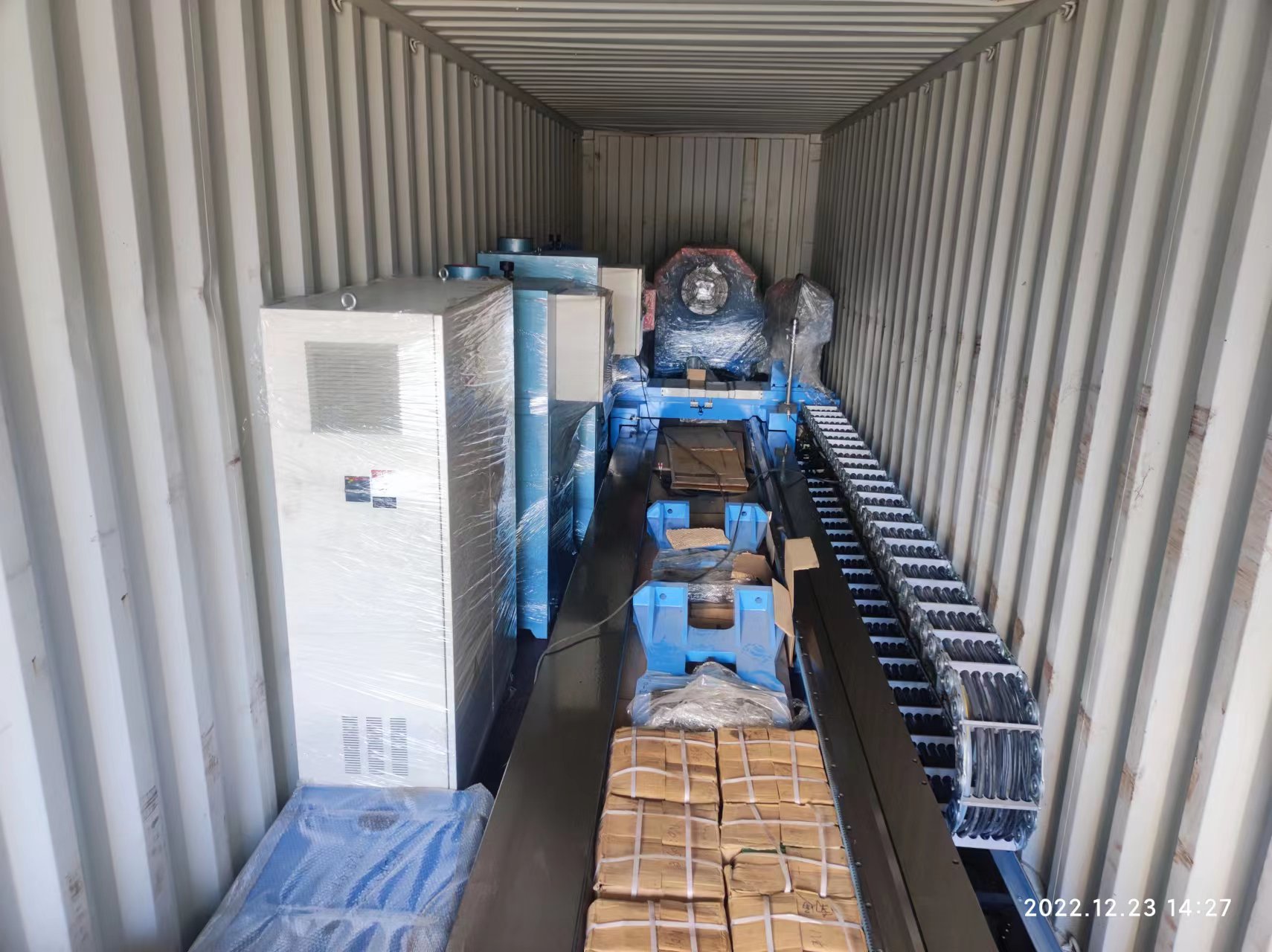

Shipping photos:
