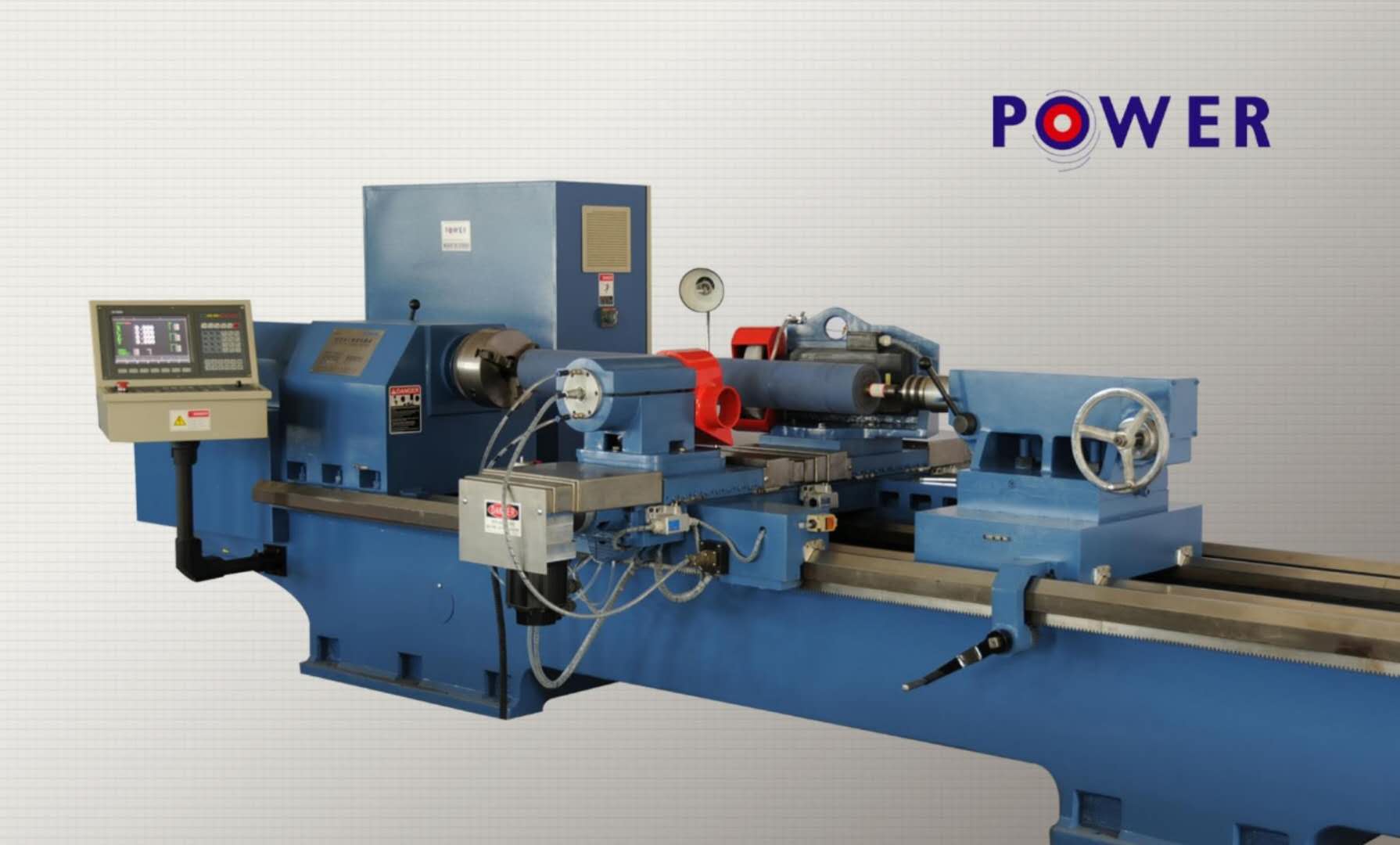

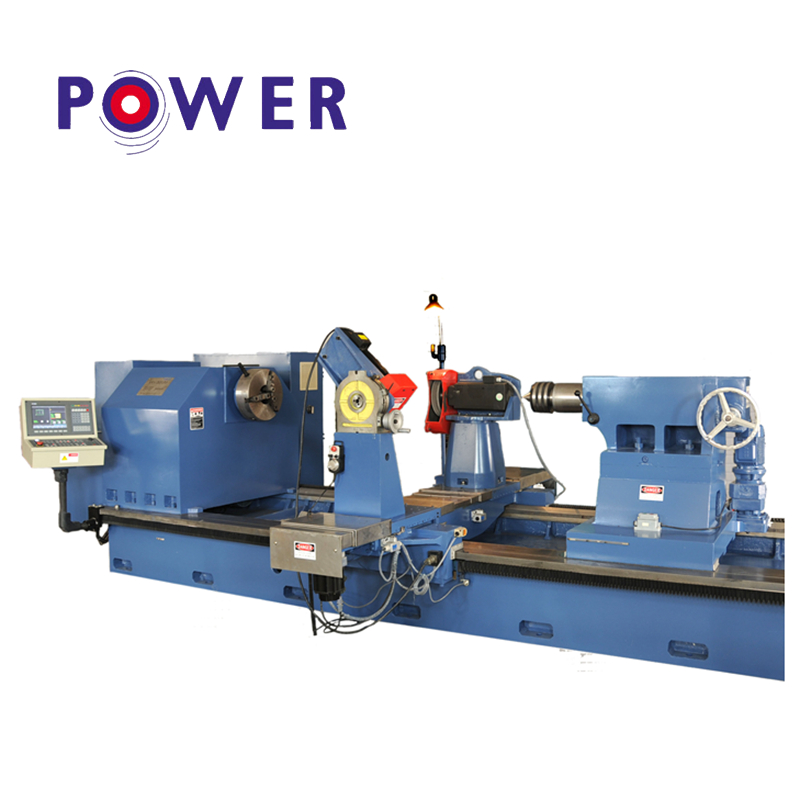

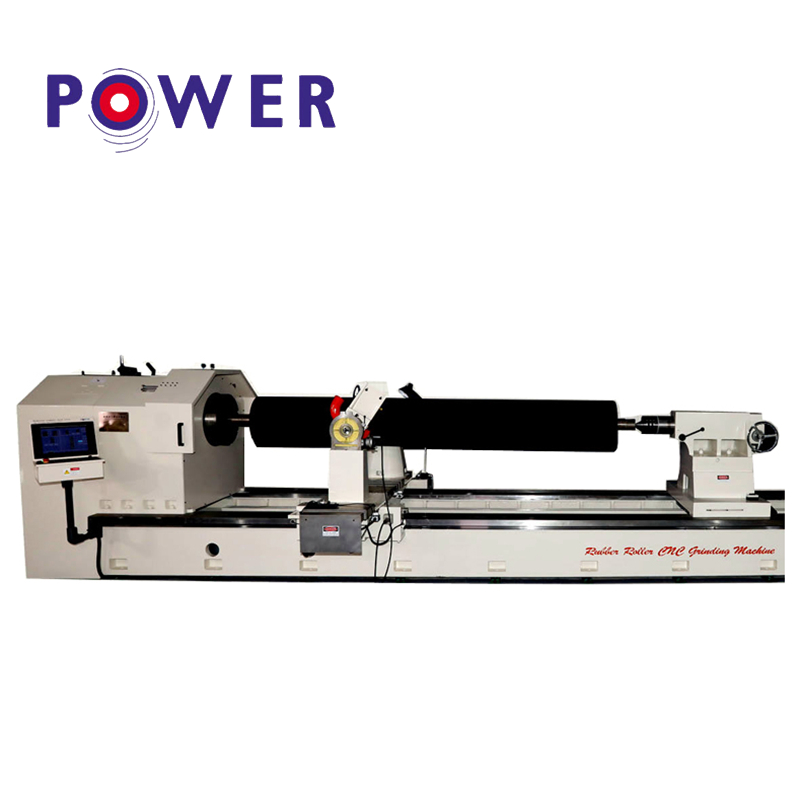

Operator Friendly Rubber Roller Grinder

PSM collection rubber roller grinding system is especially designed and artificial to replace the past curler processing method through the use of way of steel manufacturing device. set up grinding head on the engine lathe is the beyond approach to fabricate curler, which the great of roller is difficult to benefit the requirement of the prevailing giant. the number one purpose lies within the form of lathe. ultimately, it isn't always the grinding device; the transferring areas of the massive and medium carriage desk are huge than that of grinding tool. consequently, vibration can be produced at the same time as within the grinding processing, in an effort to generate ripple on the ground of processing rollers. further, due to the width limit of the guide-rail of lathe, the way of installation grinding head is rarely to make sure the stableness while in operation.

1. Standard equipment of PSM series includes:

     a. a full flood recirculating coolant system

     b. motorized tailstock

     c. variable speed traverse and spindle drives

     d. front and rear independently operated carriage tables

     e. a direct drive grinding head mounted on the rear

2. Specially designed to replace the tradtional roller grinding process method.

3. Two medium carriage tables assembled to ensure accurate performance and operating stability.

4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.

5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.

6. Capable of realizing expansion of processing of special-shaped rubber rollers.

Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Shipping detail:

Within 2-4 weeks
